●	Genuine Epson I3200 U1 Phs
●	Unique Designed Compact Body
●	Built-in Head Heating System
●	Powerful Suction Platform
●	White Ink Recirculation System
●	Touch Screen Panel

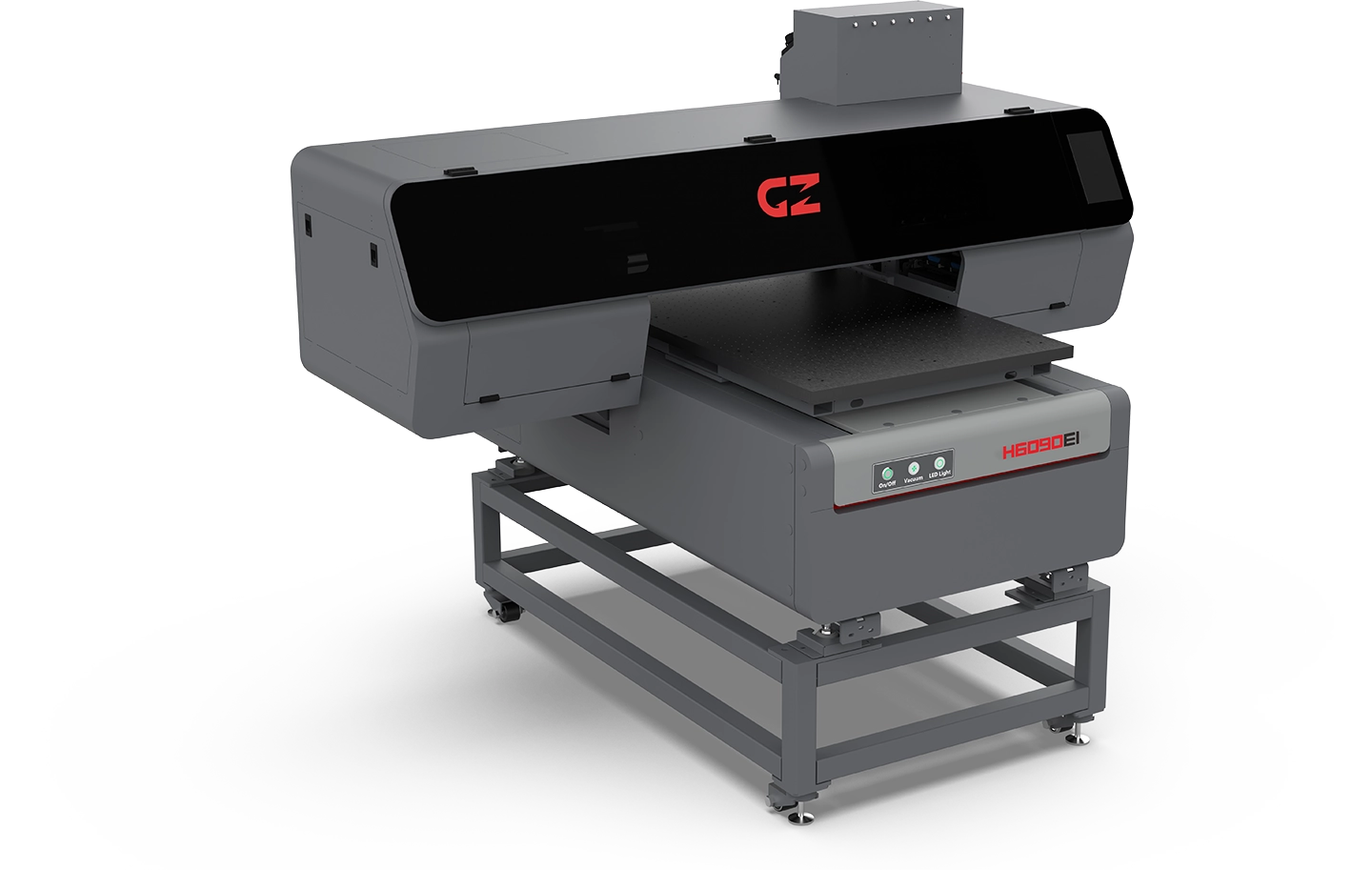

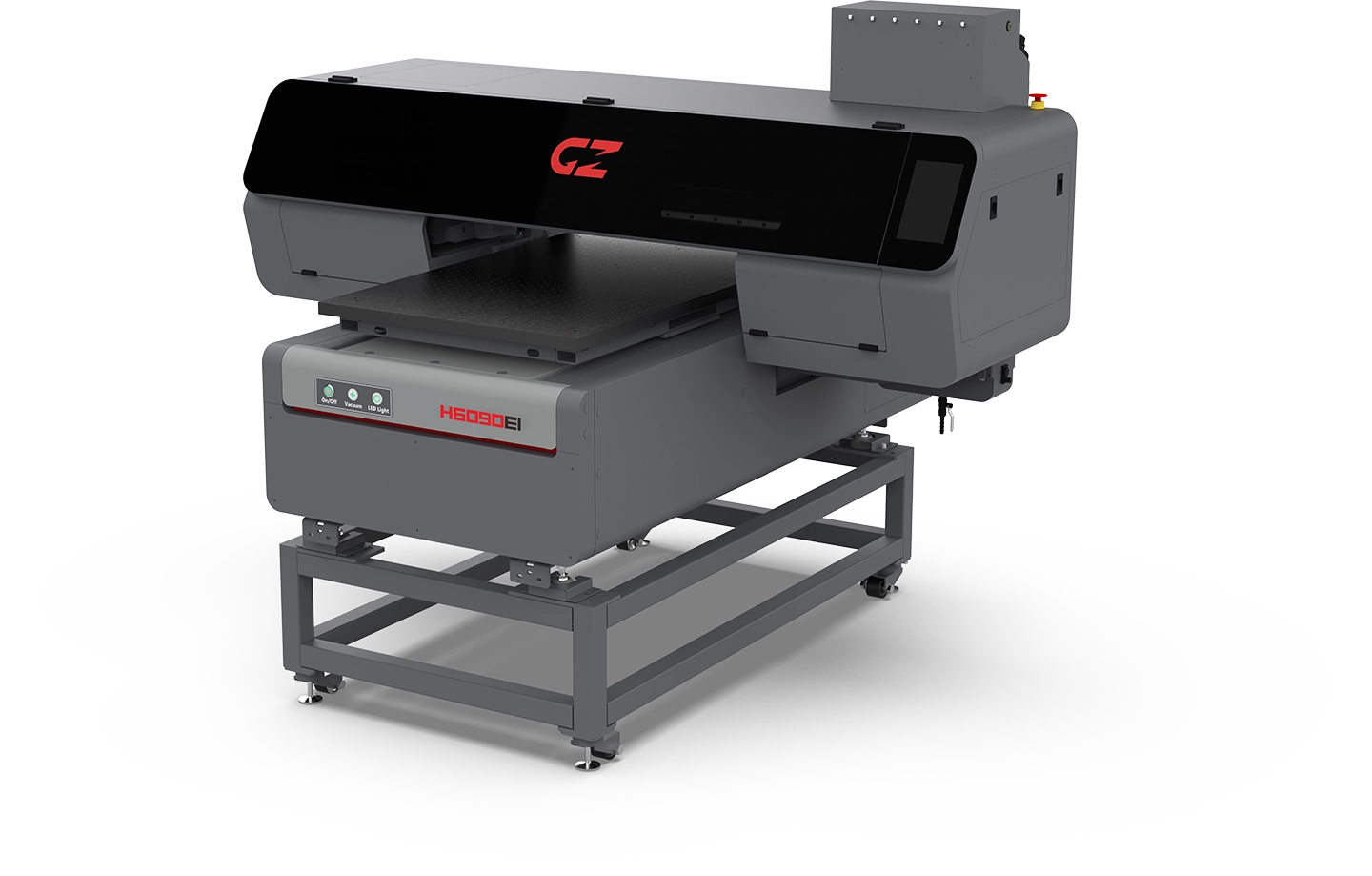

Model	H6090EI
Print Head	3x Epson I3200-U1 Print Heads
Technology	Drop-on-Demand Piezo with Variable Dot
Curing System	3x Air Cooling LED UV Lamps
Ink	Specific REI-3 UV Ink Certified by Greenguard Gold
Color Configuration	KCMY; W+KCMY; W+KCMY+V
Ink Supply System	Bulk Ink Supply System with White Ink Recirculation Stirring System
Ink Tank	1200ml
Media Thickness	Up to 180mm
Media Type	Acrylic, Aluminum Sheet, Foam Board, PVC Board, Leather, Glass Bottle, Wood, Ceramic Tile, etc
Printing Size	Max.600x900mm
Printing Speed	Mode Resolution Feather CMYK+W+V Draft 720x1200dpi Weak 2.9mins/sheet Production 720x1200dpi Normal 3.7mins/sheet Hi-Res 720x1800dpi Normal 4.4mins/sheet Photo 720x1800dpi Strong 5.6mins/sheet
Data lnterface	Gigabit Ethernet
Working Environment	Temp. 20℃~30℃, Humidity: 35%~65%
Software	FlexiPRINT Mini UV+GZ Control Console
Power Requirements	Single-Phase, 50Hz/AC, 220V±10%, 2.3A, 500W

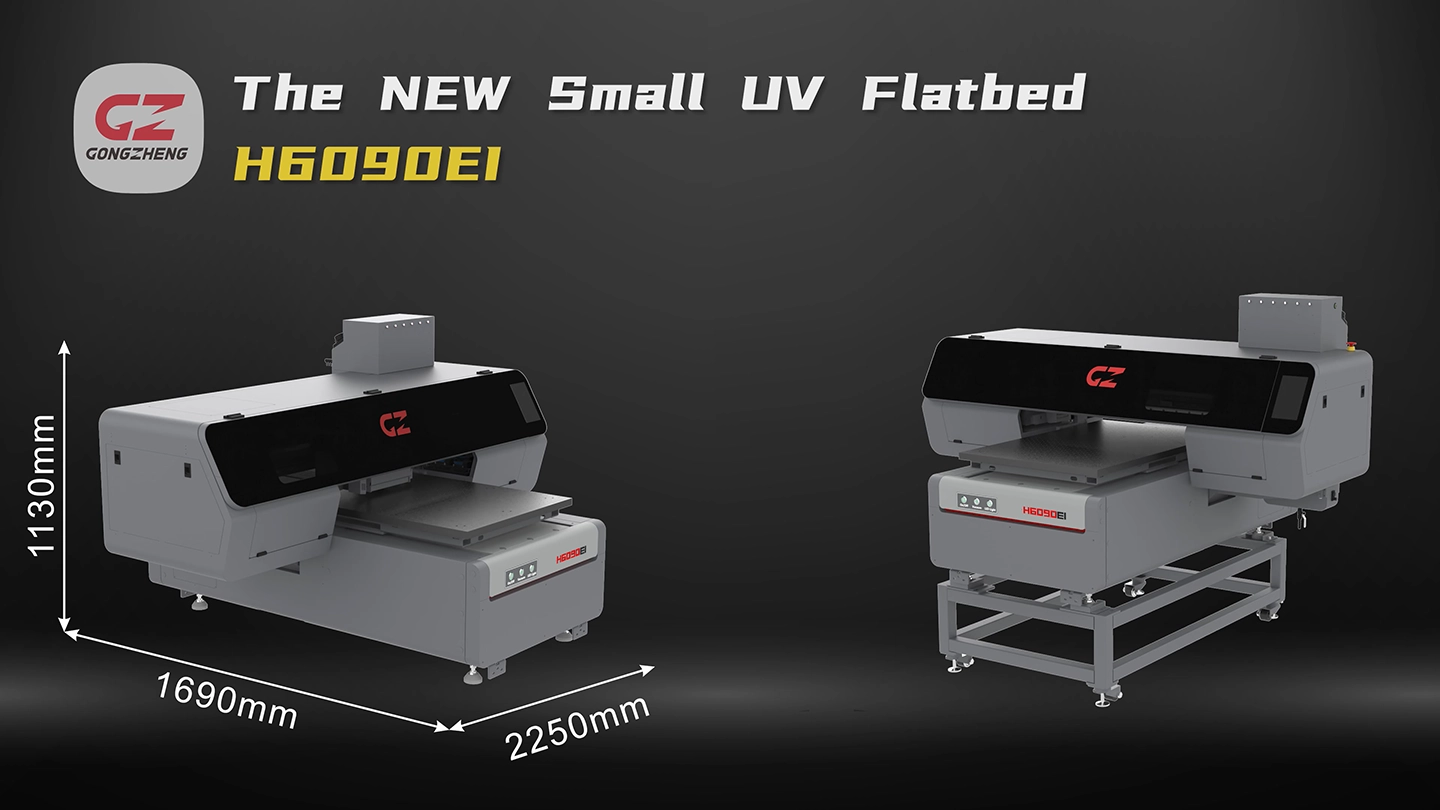

Packed / Installed Size	LxWxH(mm): 2250x1690x1130 / 1577x1541x1413
G.W. / N.W.	544kgs/374KGS

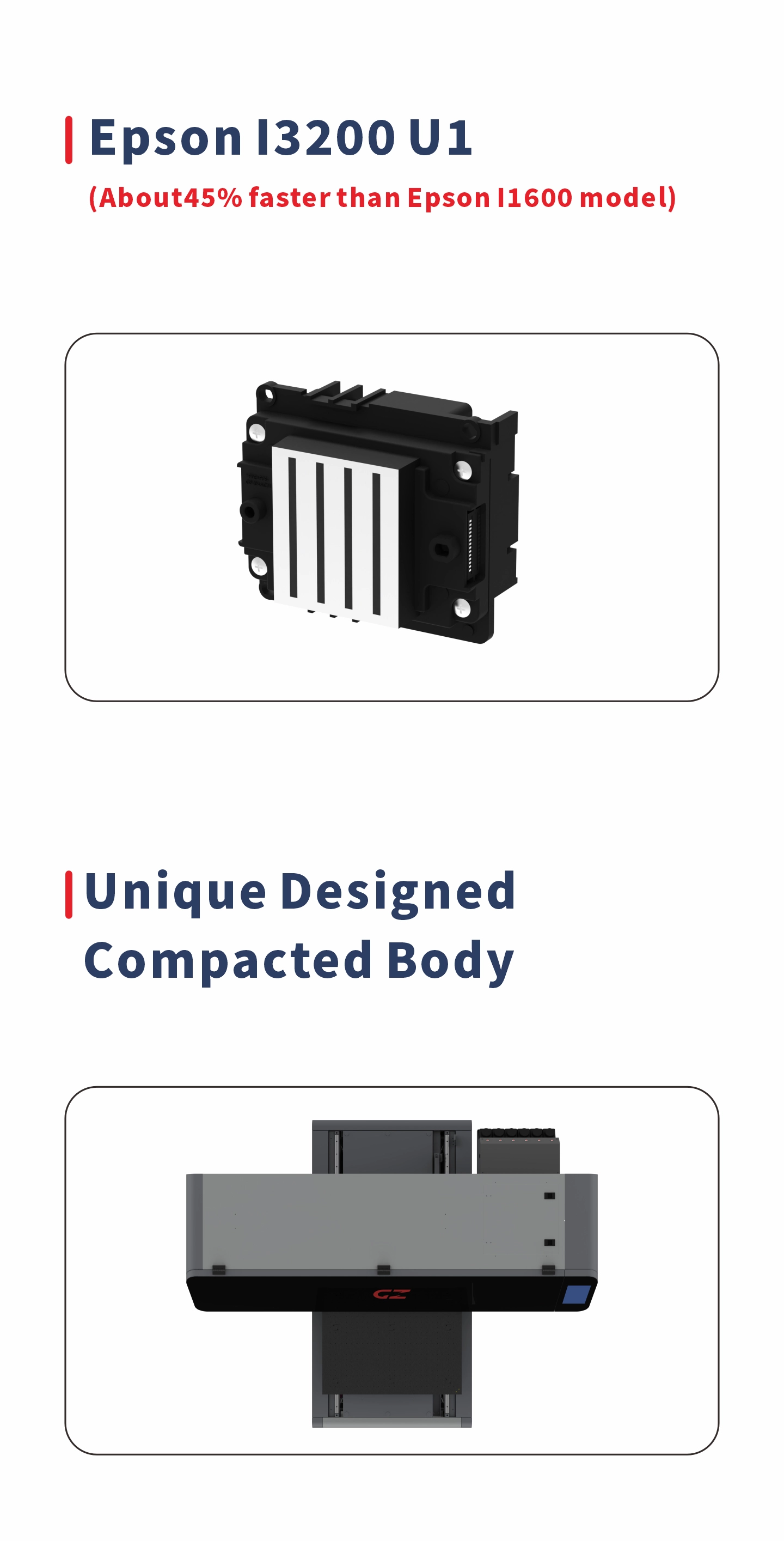

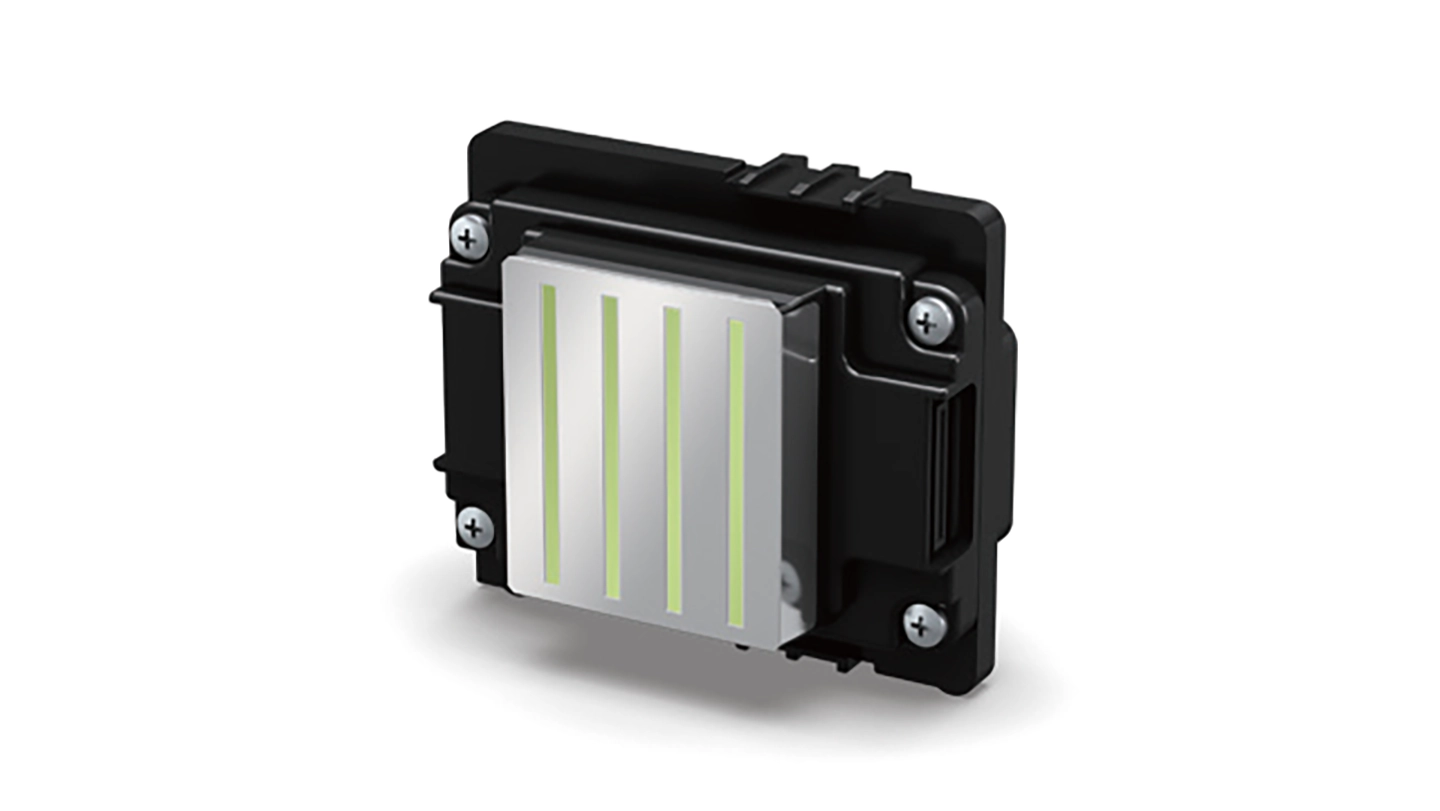

Genuine Epson I3200 U1 Phs

Epson I3200 U1 print head with PrecisionCore MicroTFP technology and original 600 dpi delivers beautiful and smooth printing at high speed.

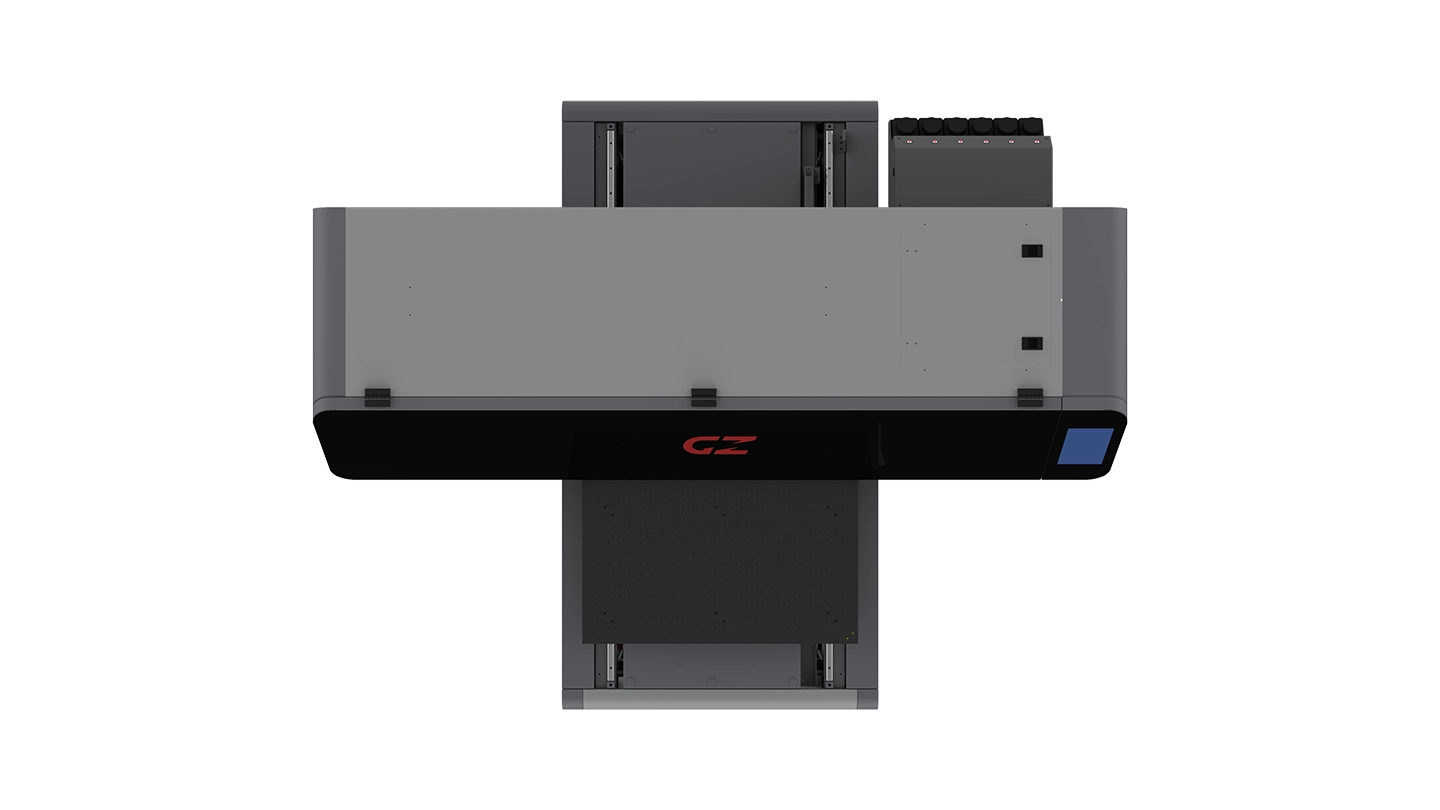

Unique Designed Compact Body

Special developed aluminum body ensures high stability printing and less footprint.

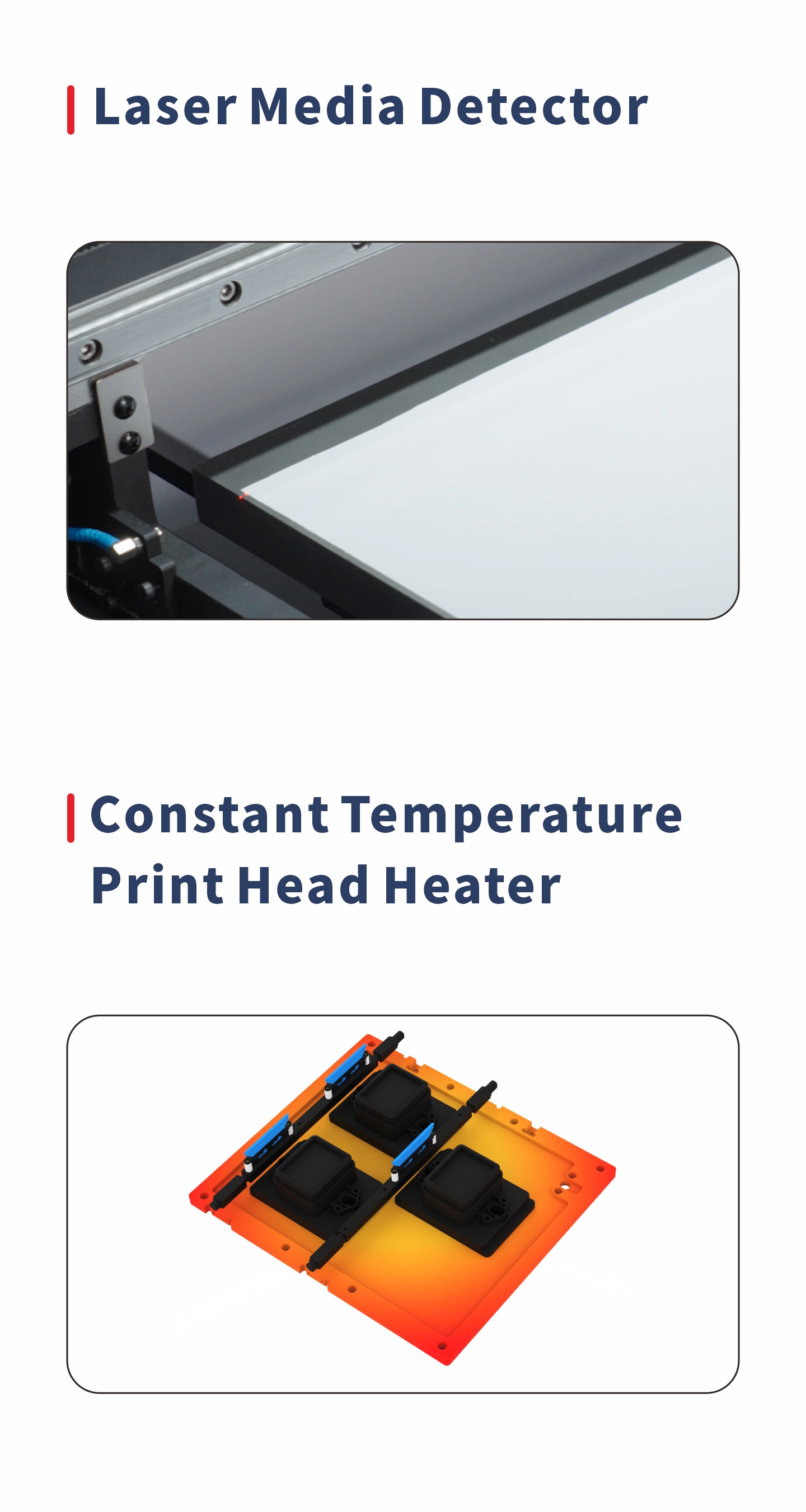

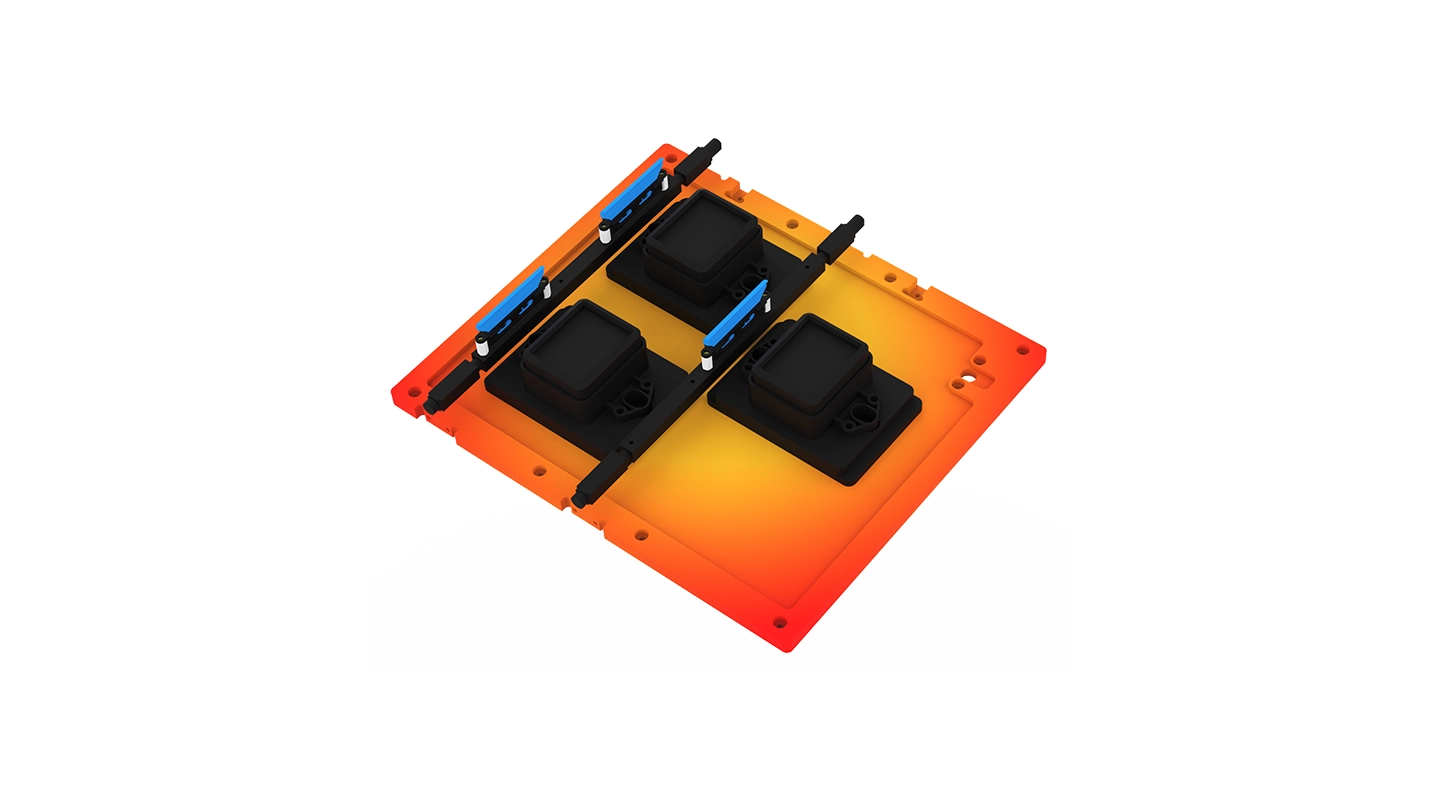

Built-in Head Heating System

The newly developed head mounting heating system warms up head quickly, and ensures smooth ink flow and stable jetting performance when in cold season.

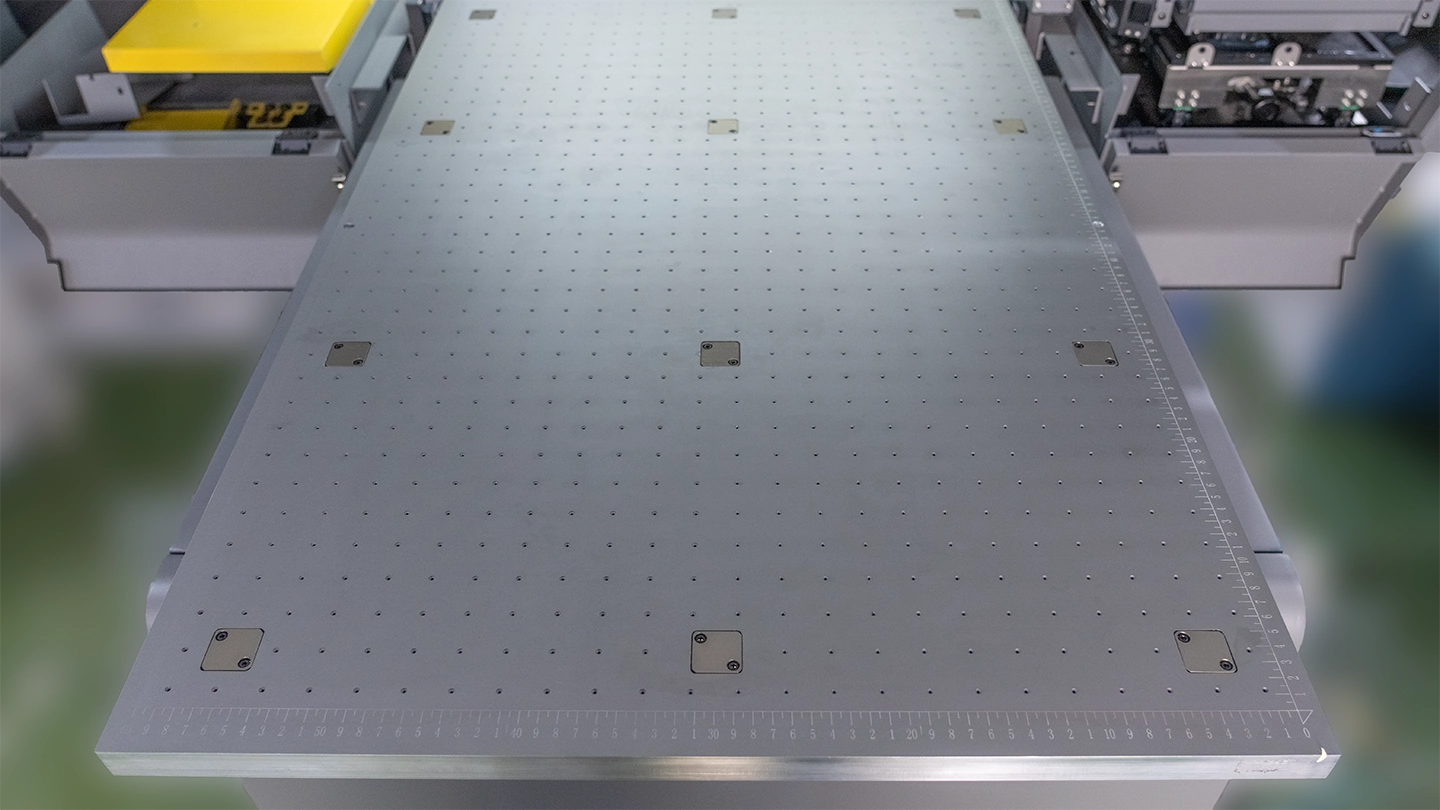

Powerful Suction Platform

One button control powerful suction platform secures safe printing and convenient operation.

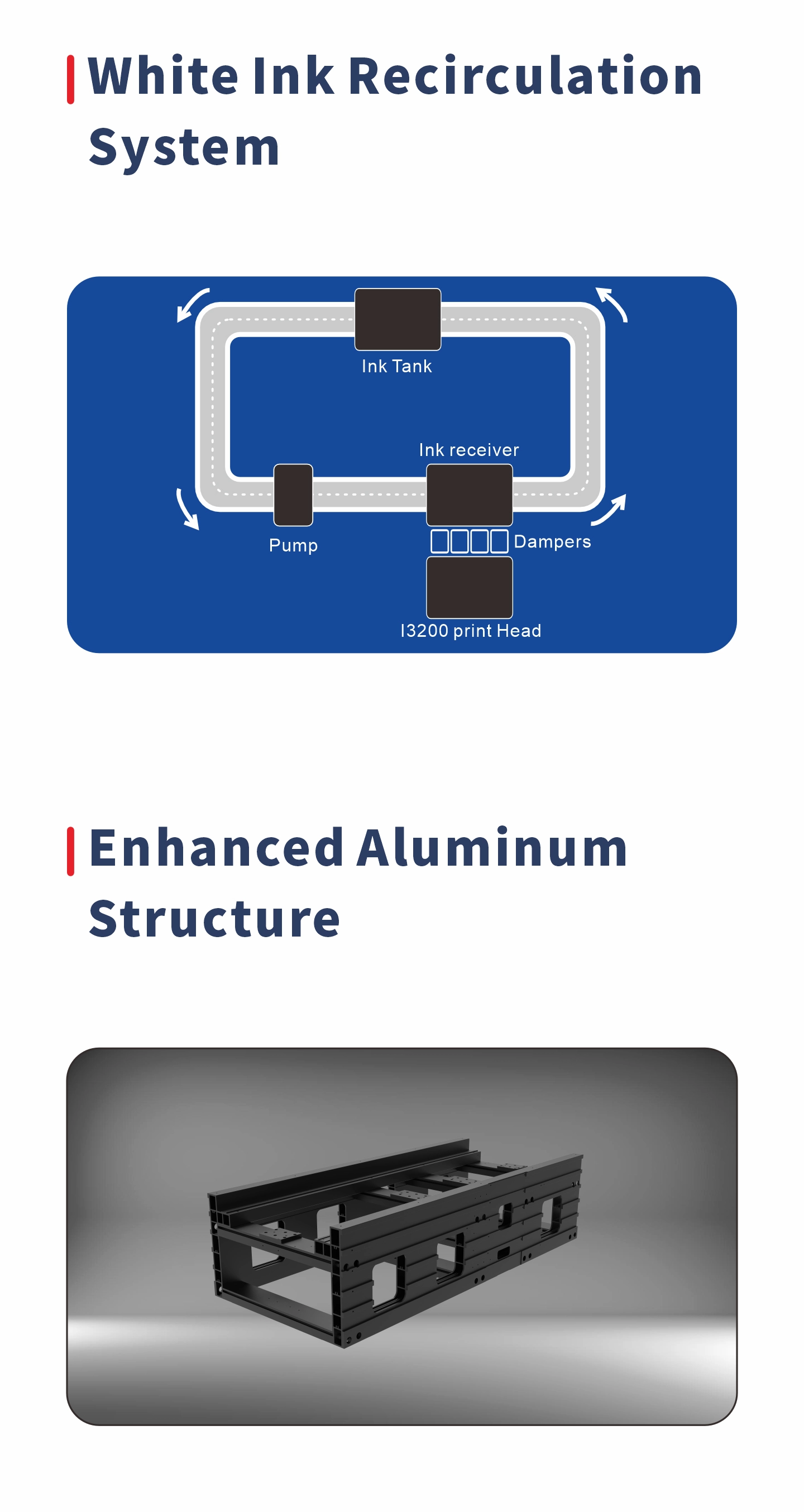

White Ink Recirculation System

The white ink circulates at regular intervals during idle mode to prevent pigment sedimentation, which can cause print head malfunctions. The white ink stirring unit ensures smooth ink flow.

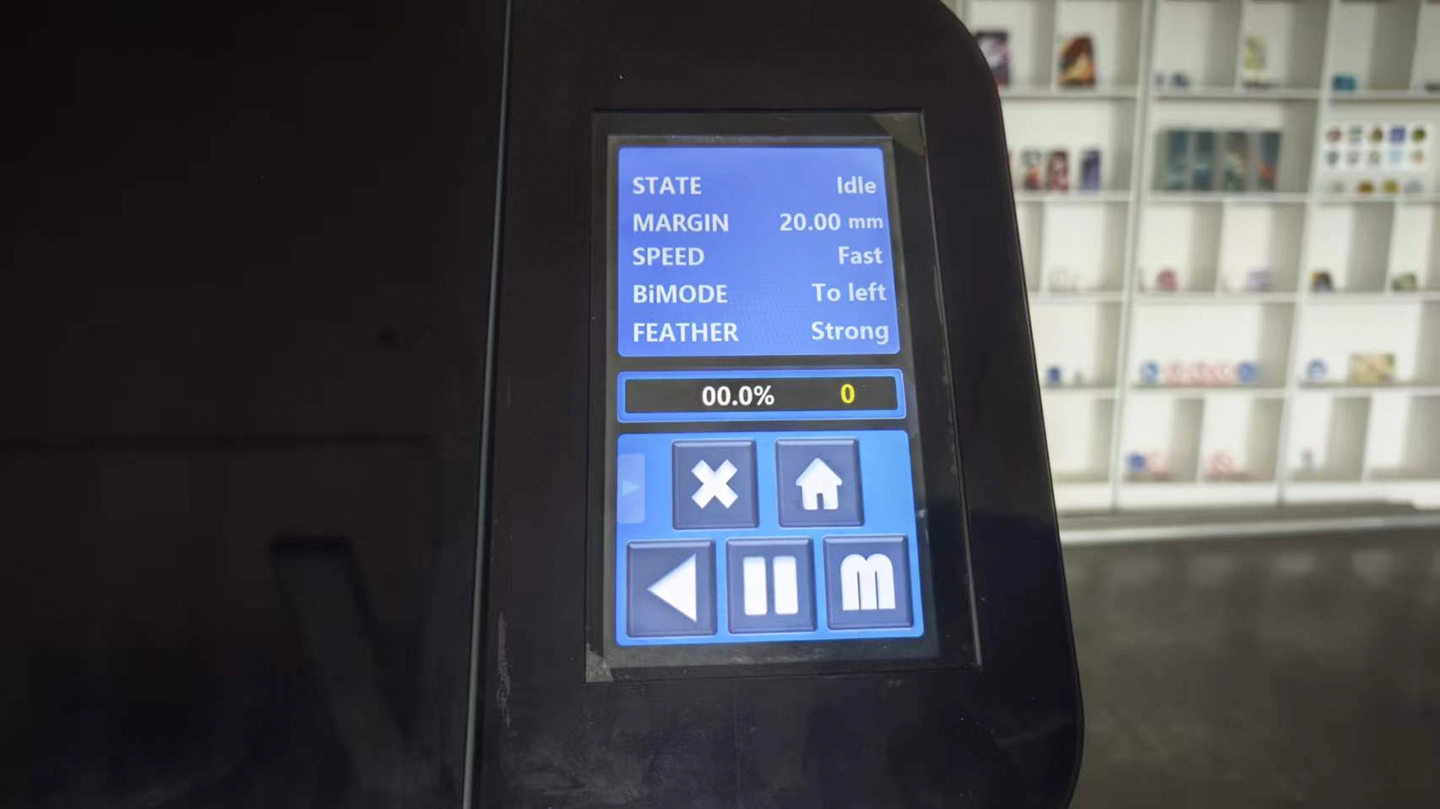

Touch Screen Panel

Built-in screen panel with collapsible design allows safe transportation and friendly operation.

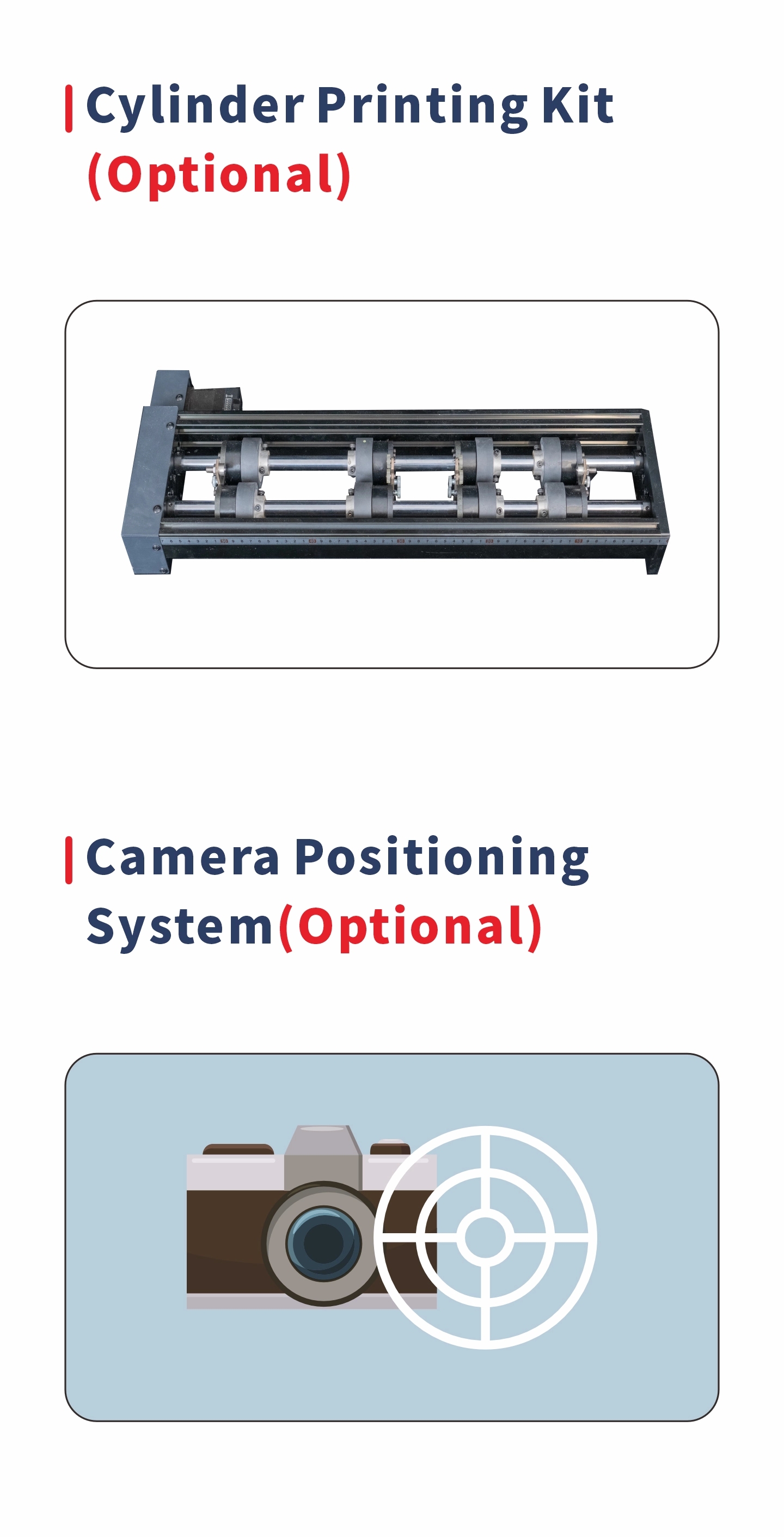

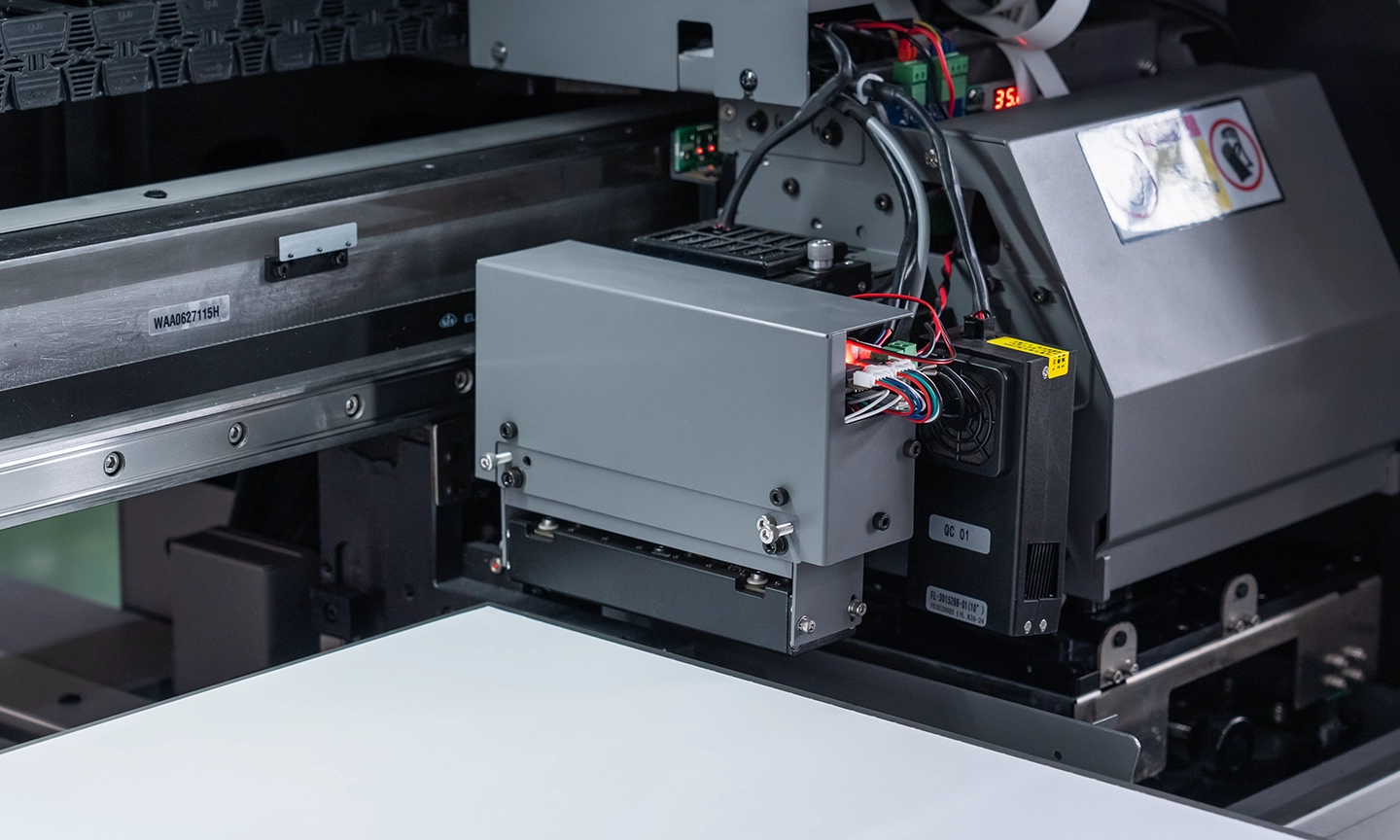

Camera Positioning System

Smart camera visual positioning for automatic recognition and accurate alignment. Save manual positioning time, perfect for irregular and small items printing with high precision and stable output.

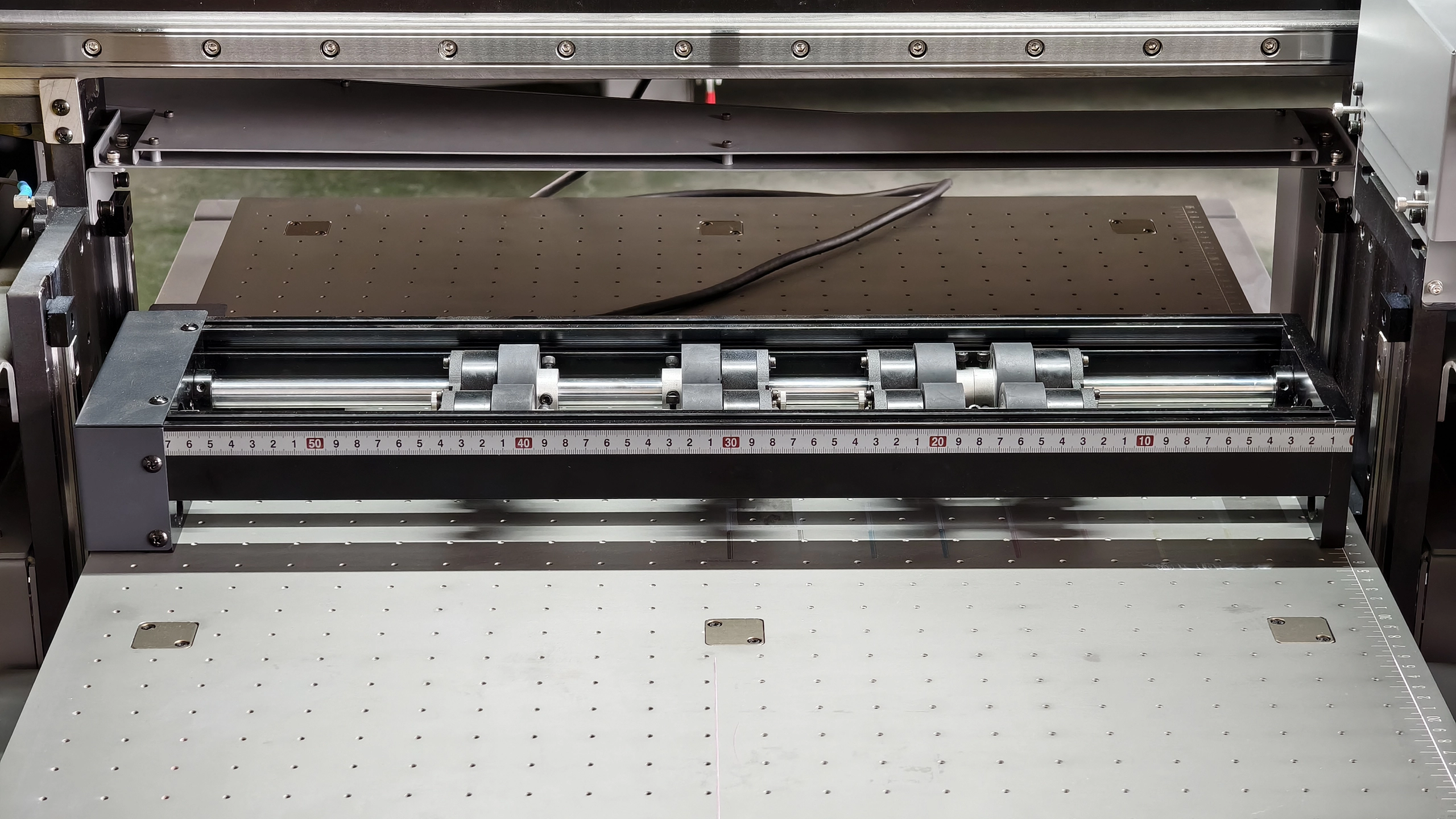

Optional Cylinder Printing Kit

Easily upgrade your printer for cylindrical & curved objects. Plug-and-play design for cups, bottles, tubes and round products, expanding your printing business with more application possibilities.
