●	Belt System with Extension Tables
●	Multi-Layer Printing Application
●	White Ink Recirculation System
●	Glossy & Matt Varnish Application

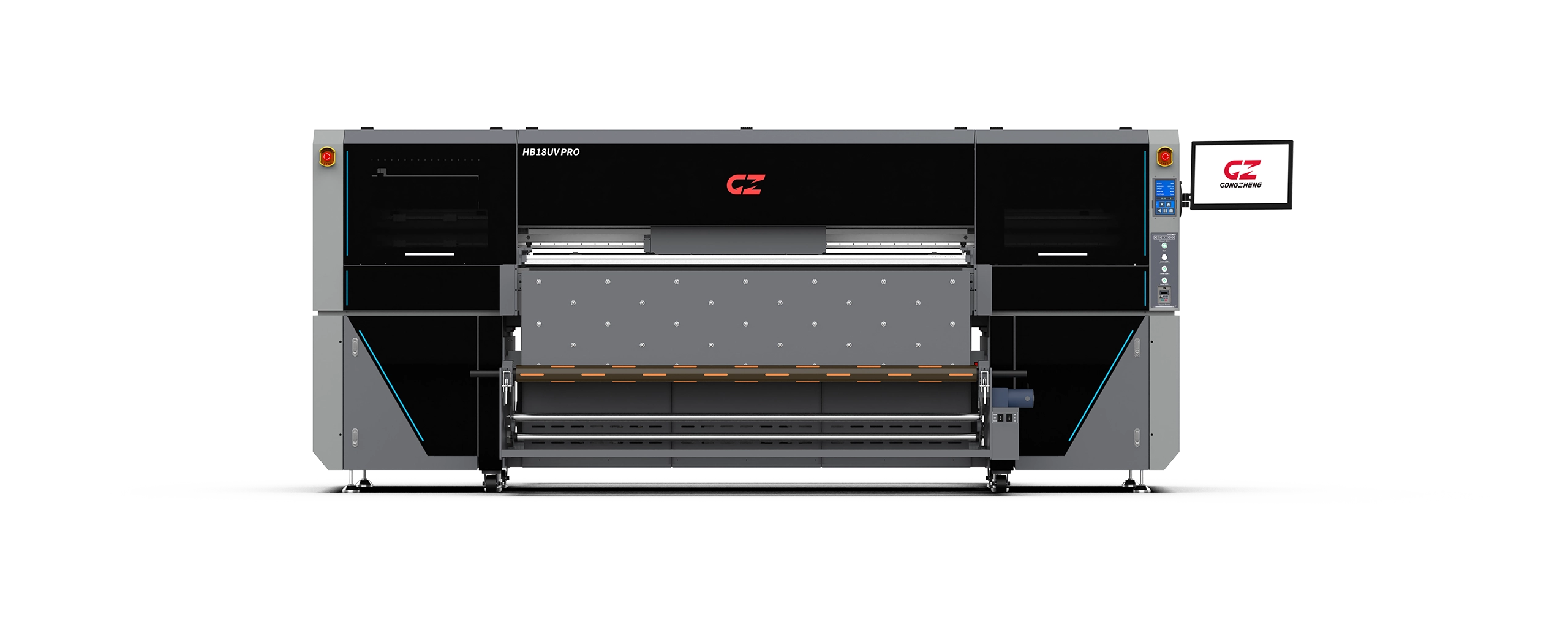

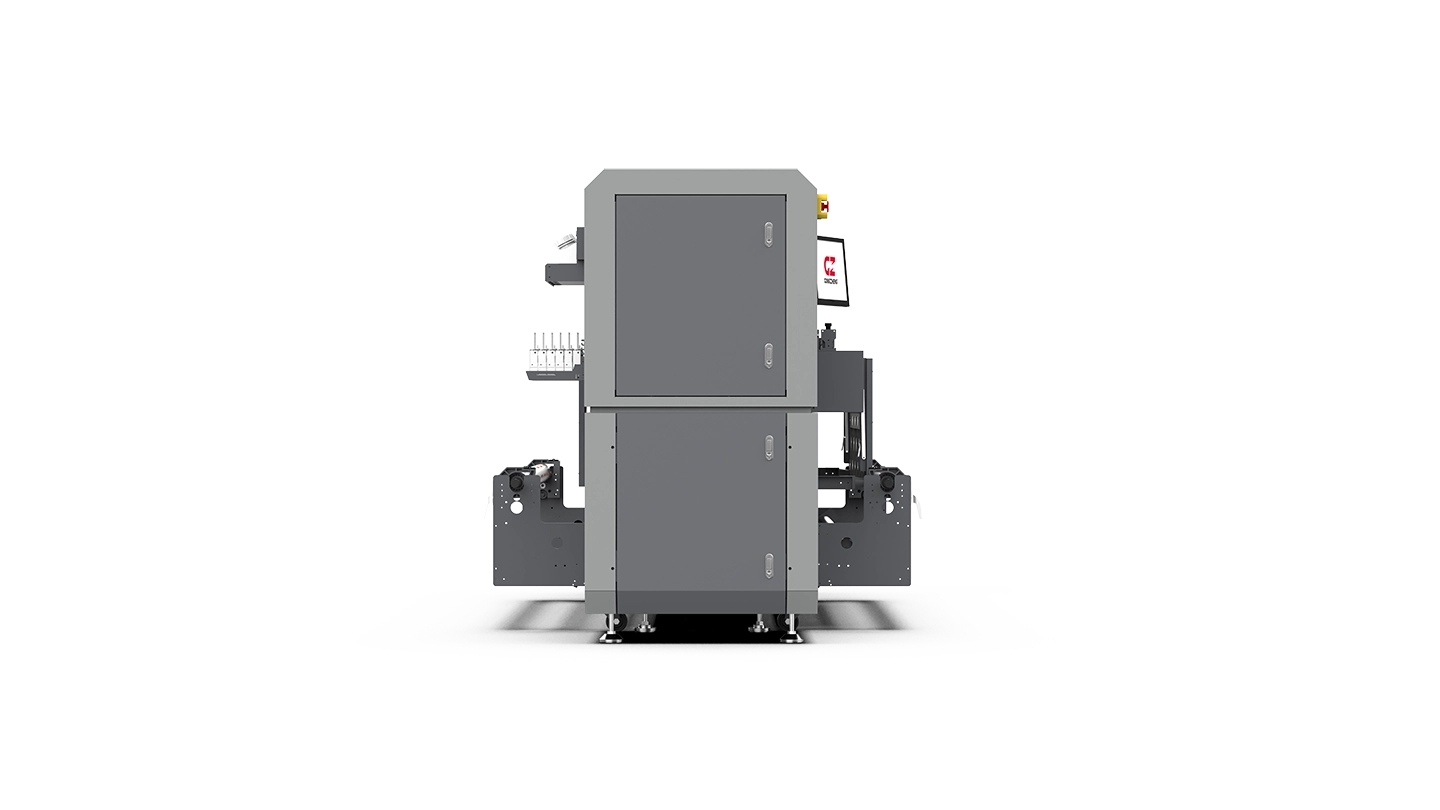

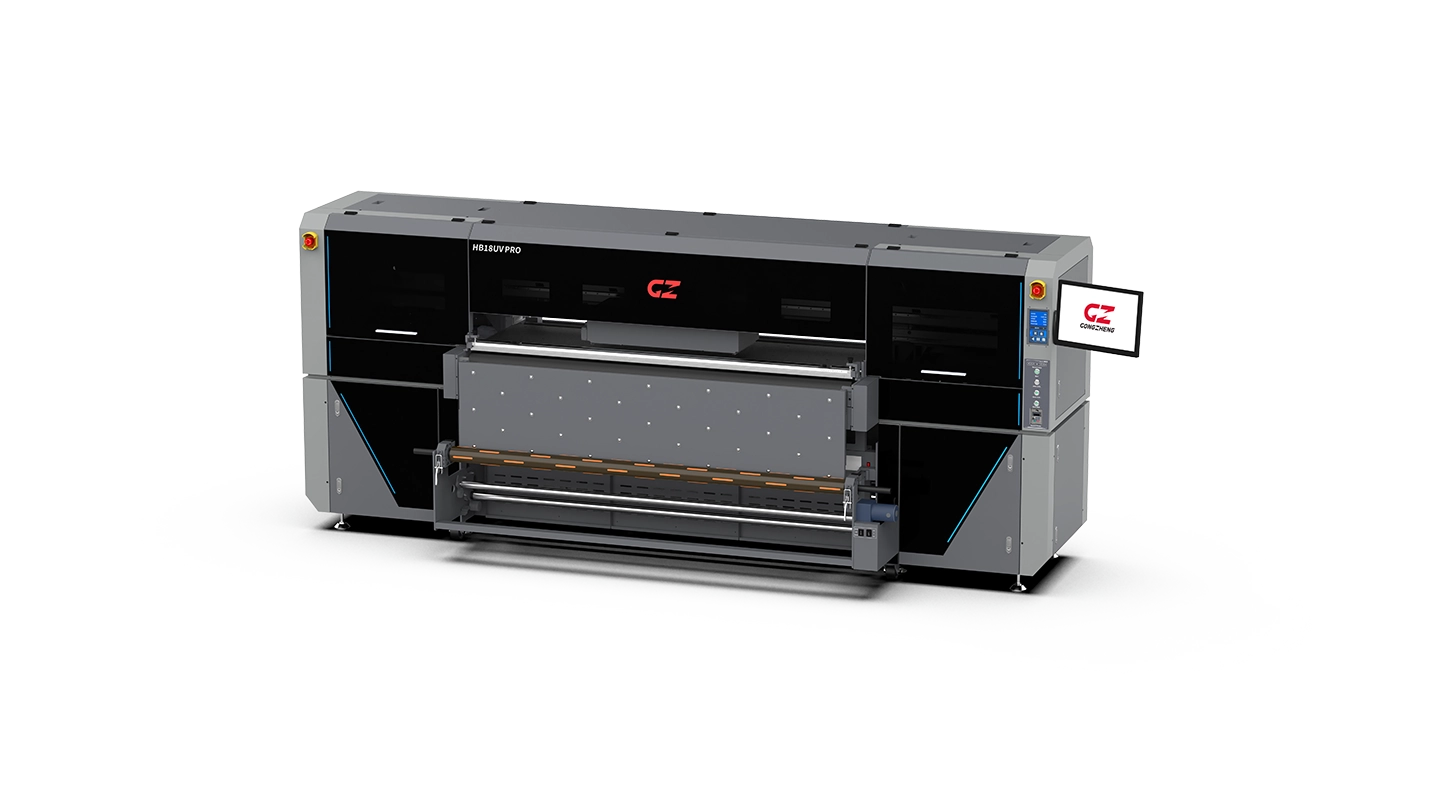

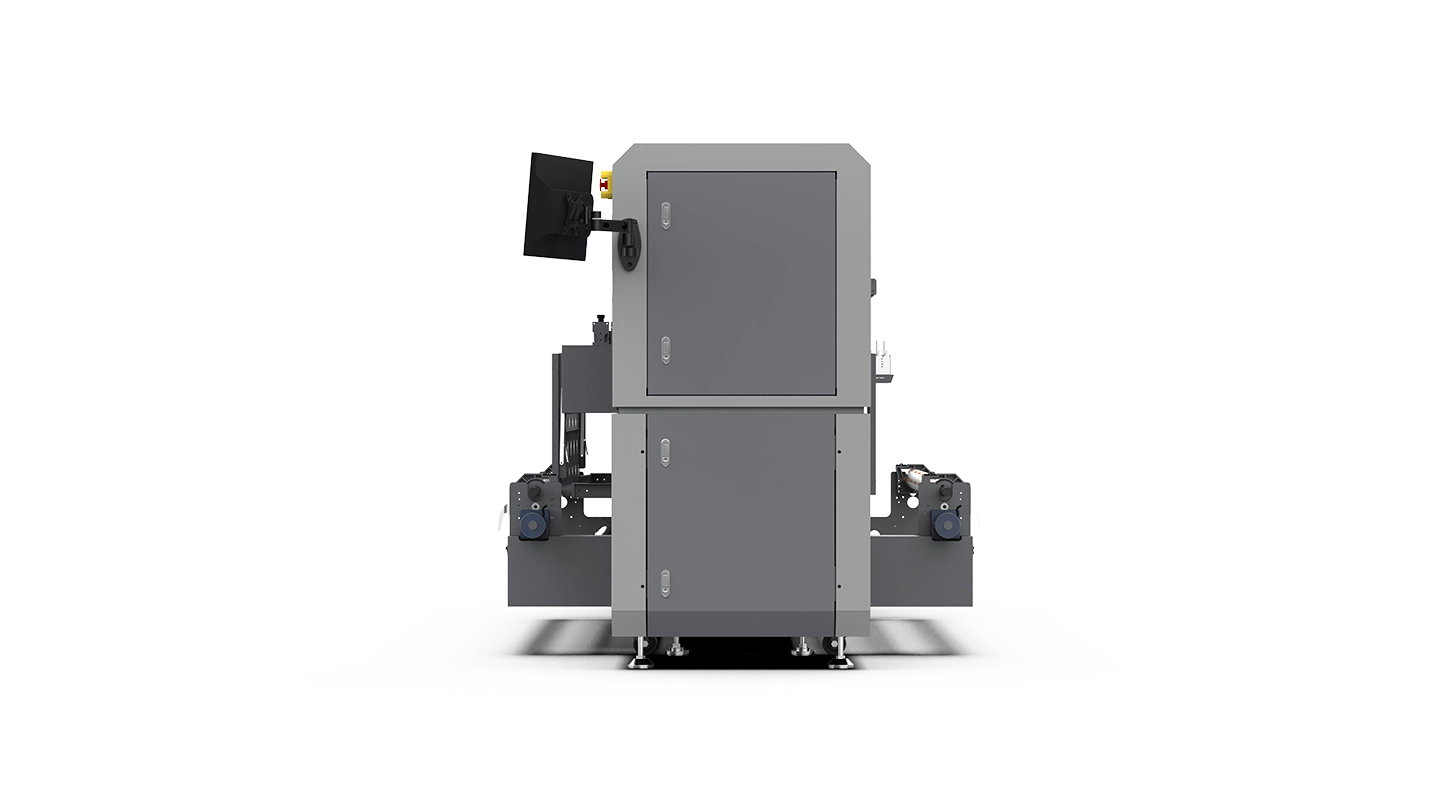

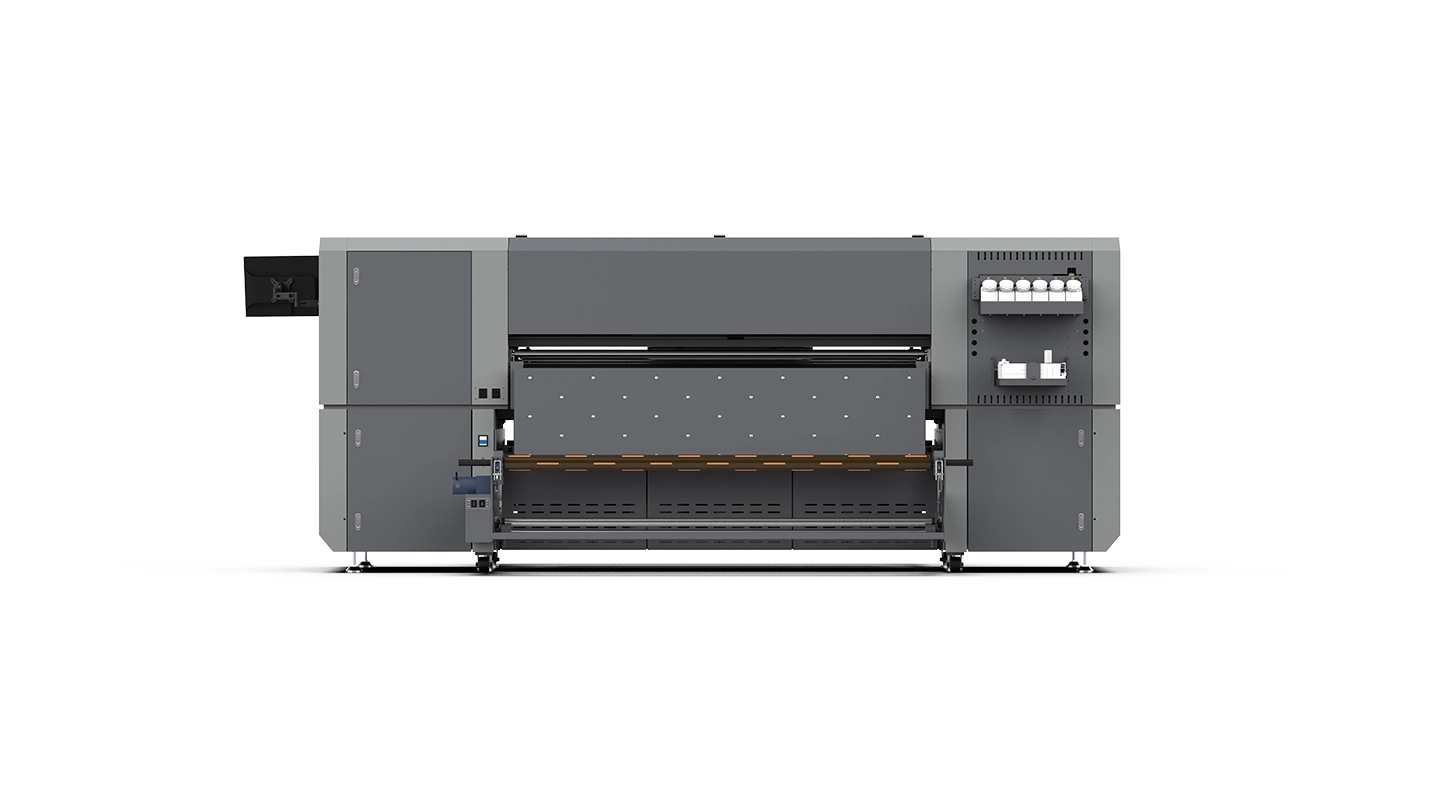

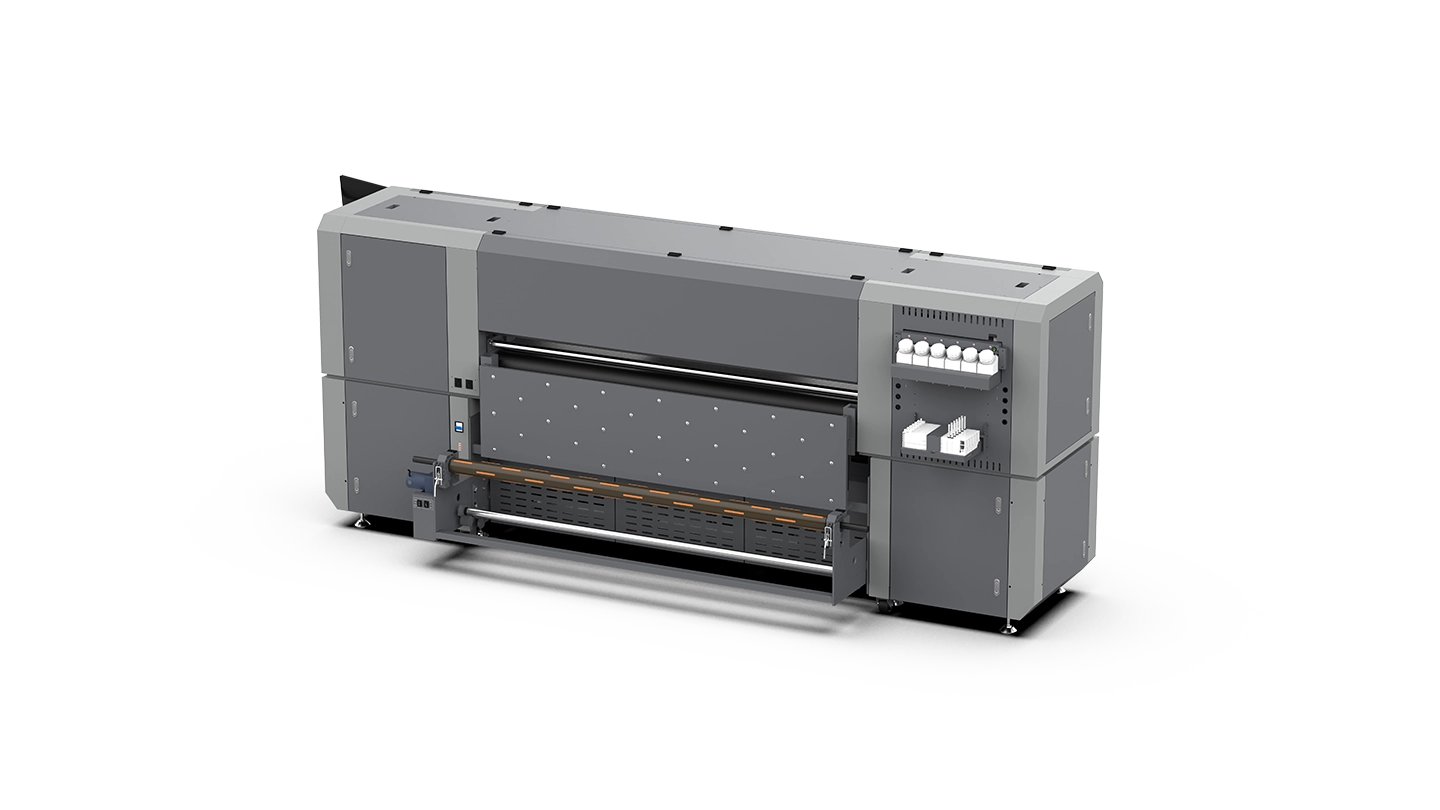

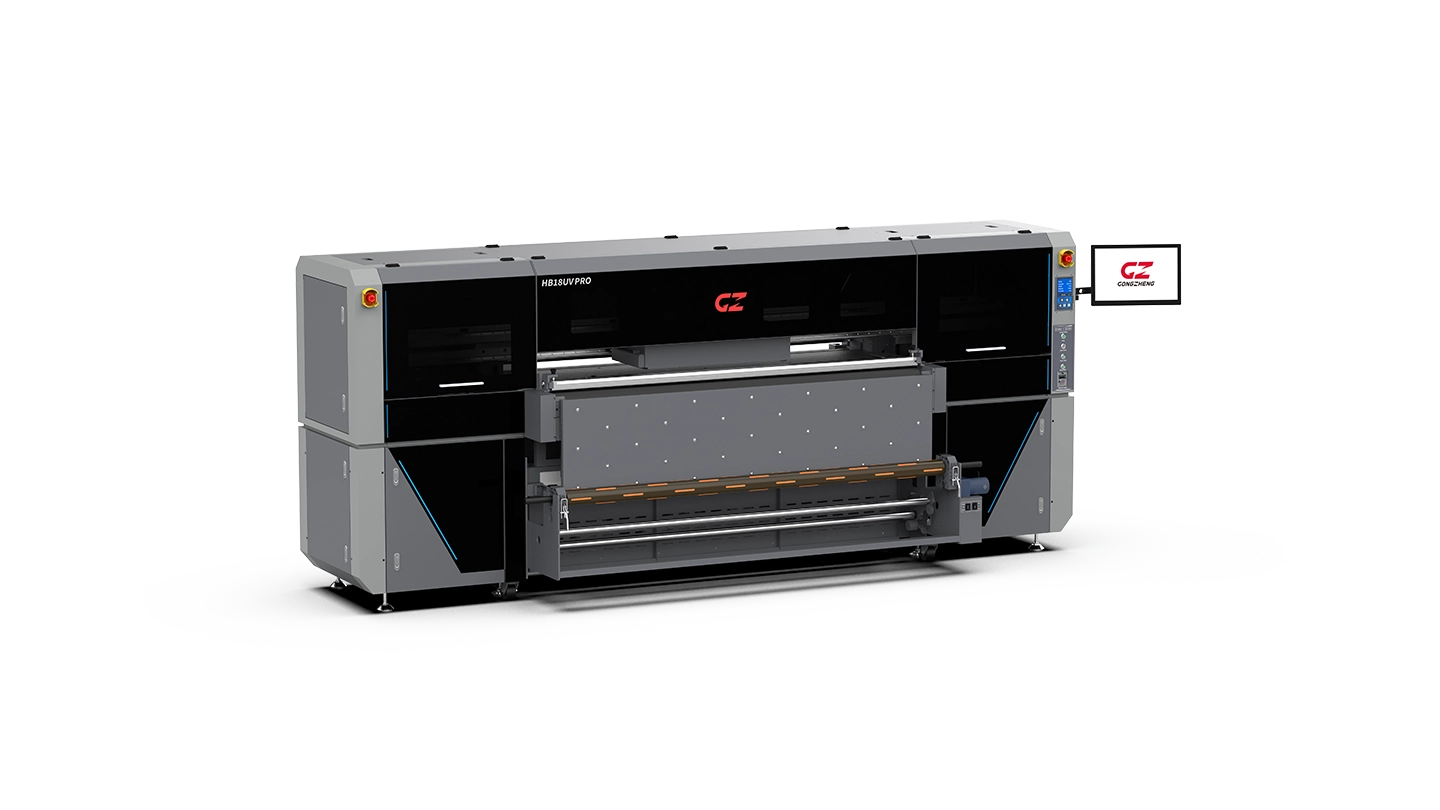

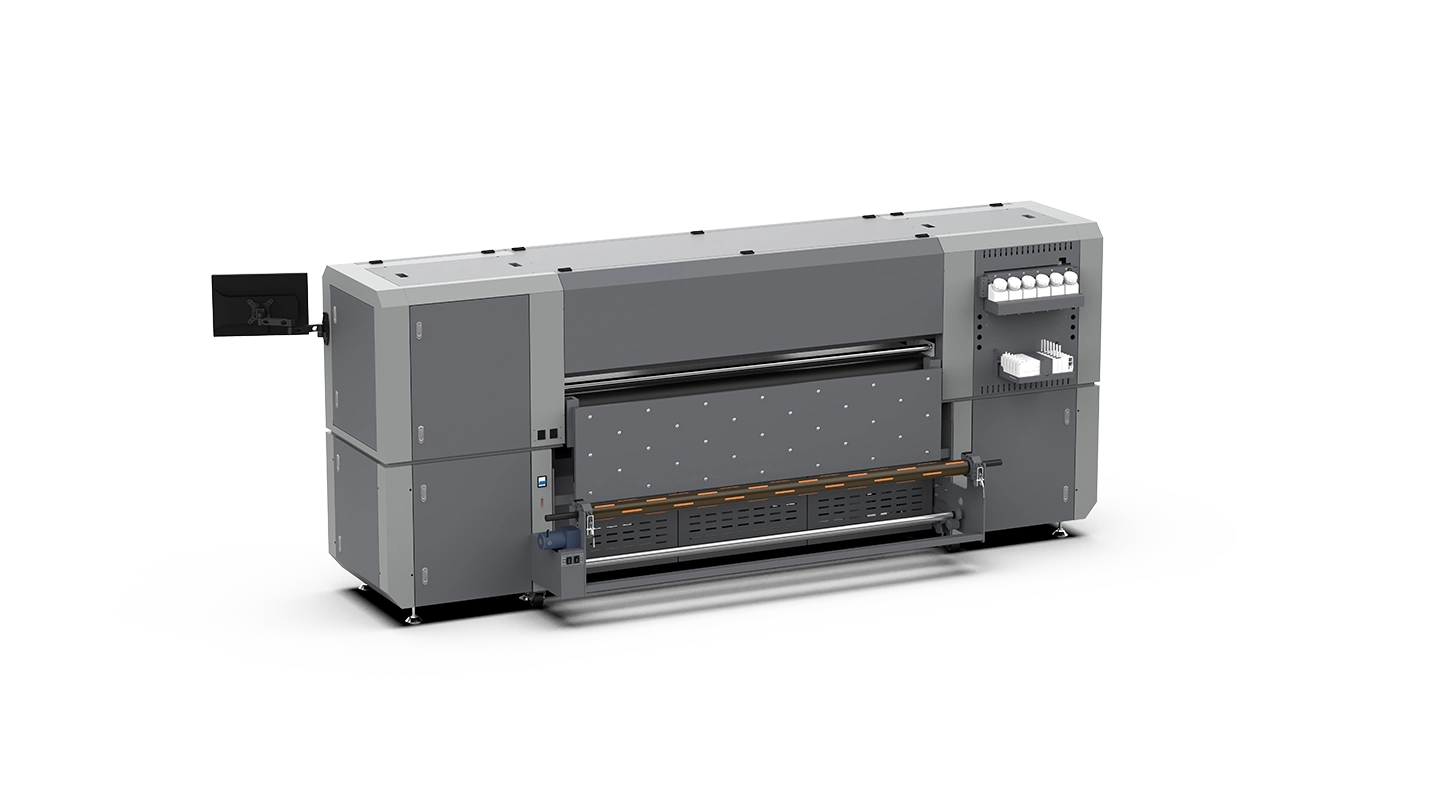

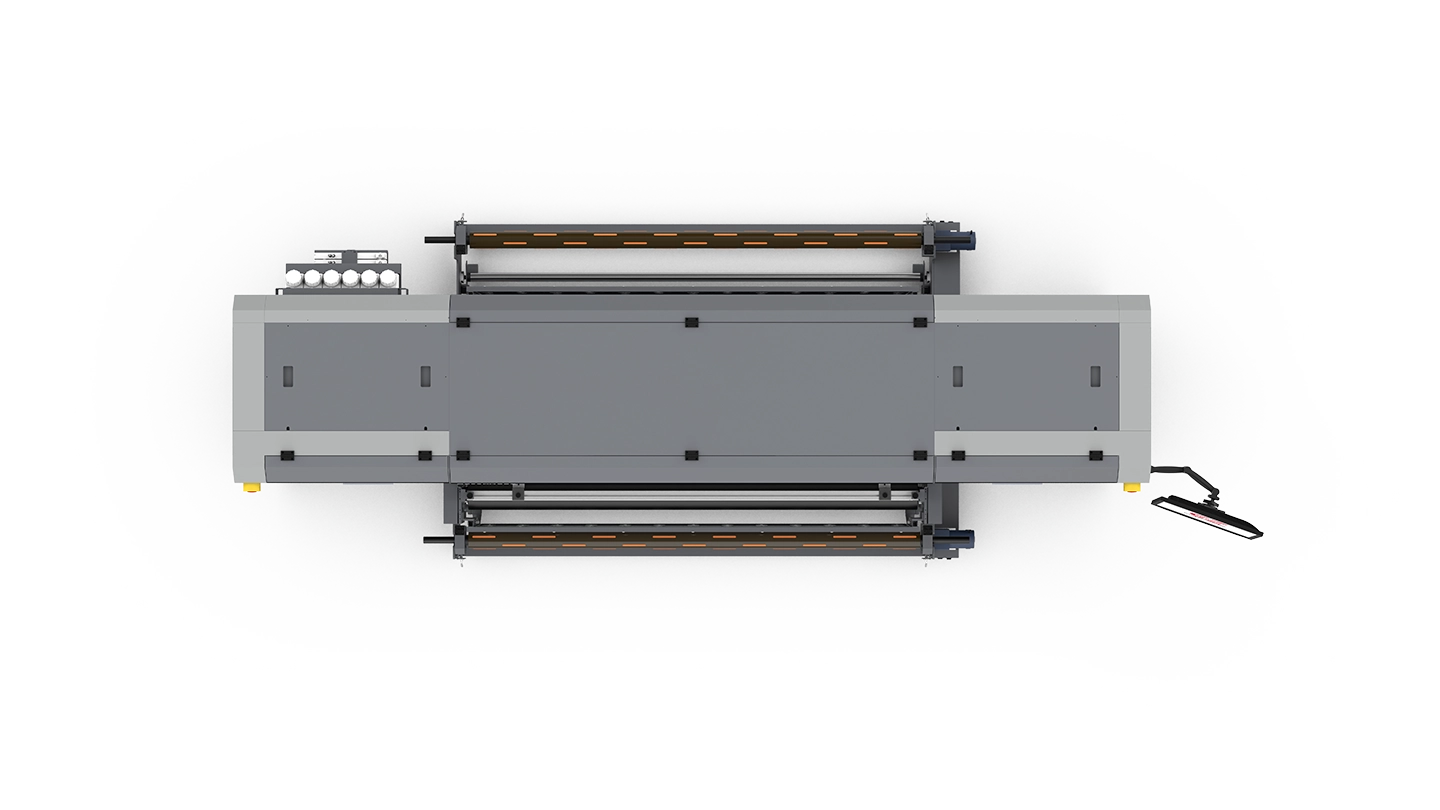

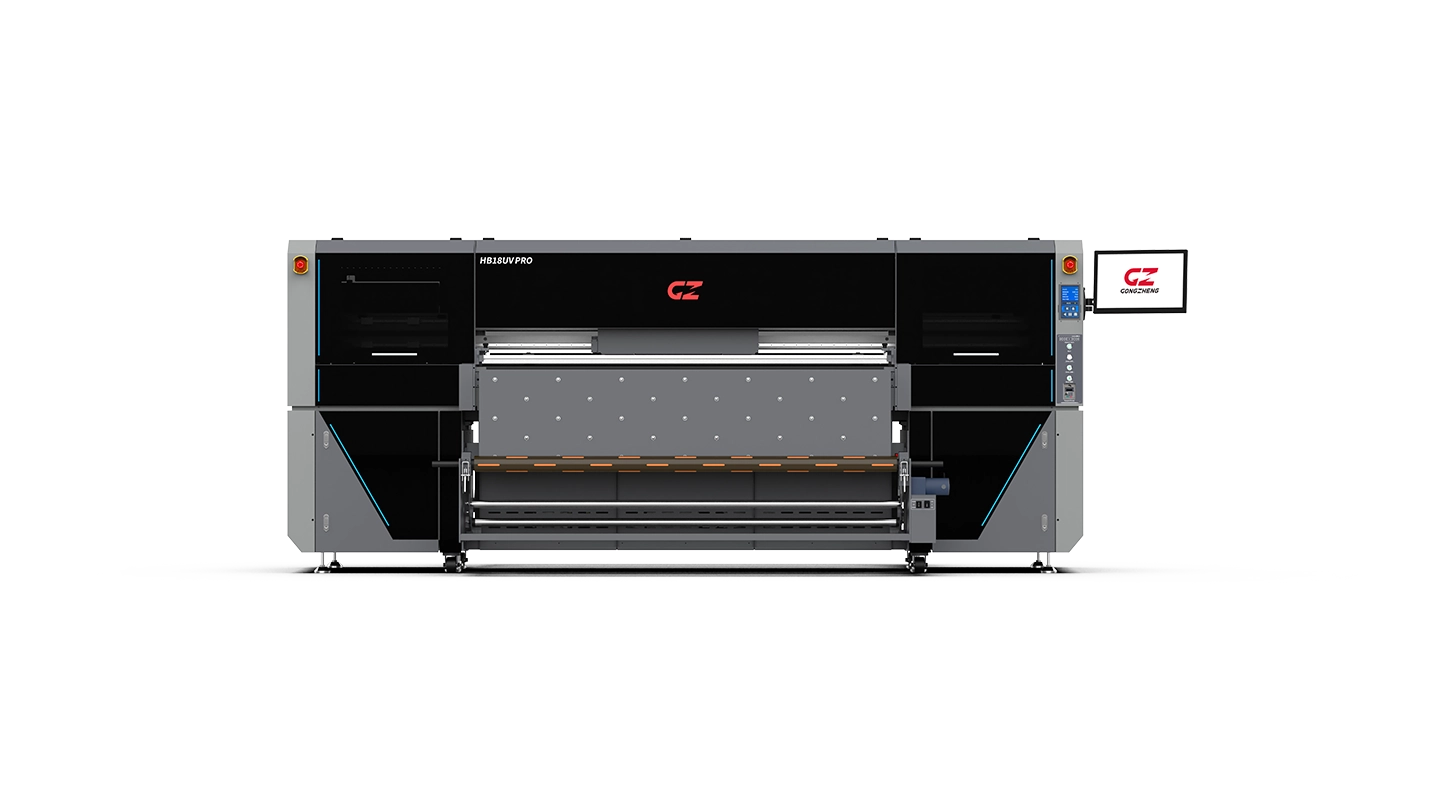

Model	HB18UV PRO
Print Head	3~8 x Epson I3200 U1 Print Heads
Curing System	Dual Water Cooling LED UV Curing System
Ink	Gongzheng Specific UV Ink: REI-3 Certified by Greenguard Gold
Color Config.	KCMY; KCMY+W; W+KCMY+V
Ink Supply System	1.5-Liter Bulk Ink Supply System + White Ink Recirculation & Stirring System
Printing Width	Max. 1850m
Media Thickness	Up to 40mm
Media Type	Flexible Media: Ceiling Film,Vinyl, Backlit, Fabric, Wall Paper, Leather...... Rigid Media: PVC Board, Foam Board, Corrugated Paper, Aluminum Sheet, Wood......
Roll Specification	Diameter: Max. 300mm; Weight: 50kgs; Core Diameter: 3 inch
Printing Speed	Mode Resolution Color(6H) Color(4H) CWC
Printing Speed	Draft 720X1200dpi 59sqm/h 39sqm/h 15.4sqm/h Production 720X1200dpi 53sqm/h 33sqm/h 12.5sqm/h High-Res 720X1800dpi 47.4sqm/h 27sqm/h 11sqm/h Quality 720X1800dpi 41sqm/h 21sqm/h 8sqm/h
Data Interface	External: USB3.0; Internal: Fiber Optical
Working Environment	Temp. 23℃~29℃, Humidity: 50%~80%
Software	FlexiPRINT / ONYX (Optional)...+ GZ Printer Manager
Power	Single-Phase, 50Hz/AC, 220V±10%, 12A (Printer) + 8A (UV Controller)
Packed / Installed Size	LxWxH(mm): 3900x1150x1830 / 3740x1407x1581
G.W. / N.W.

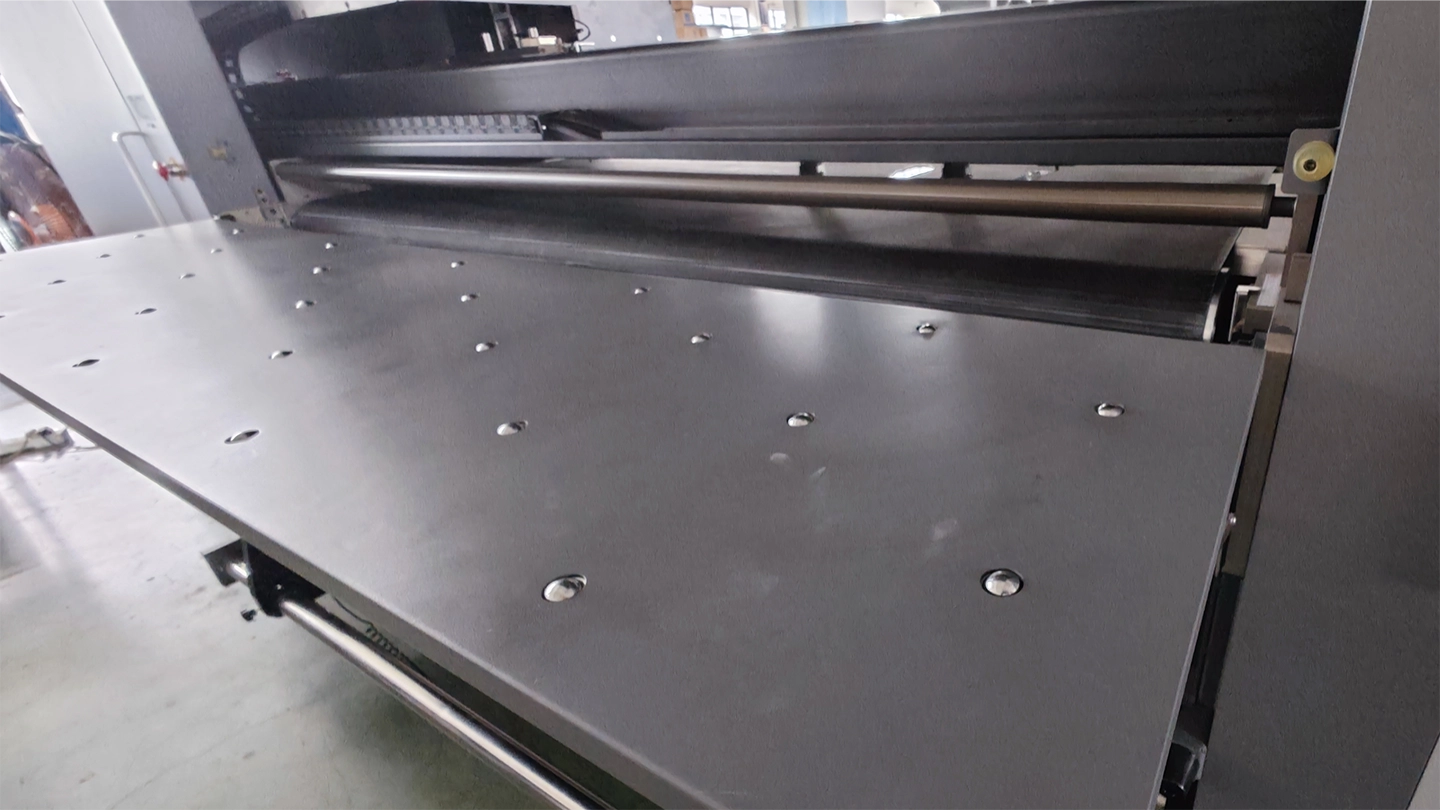

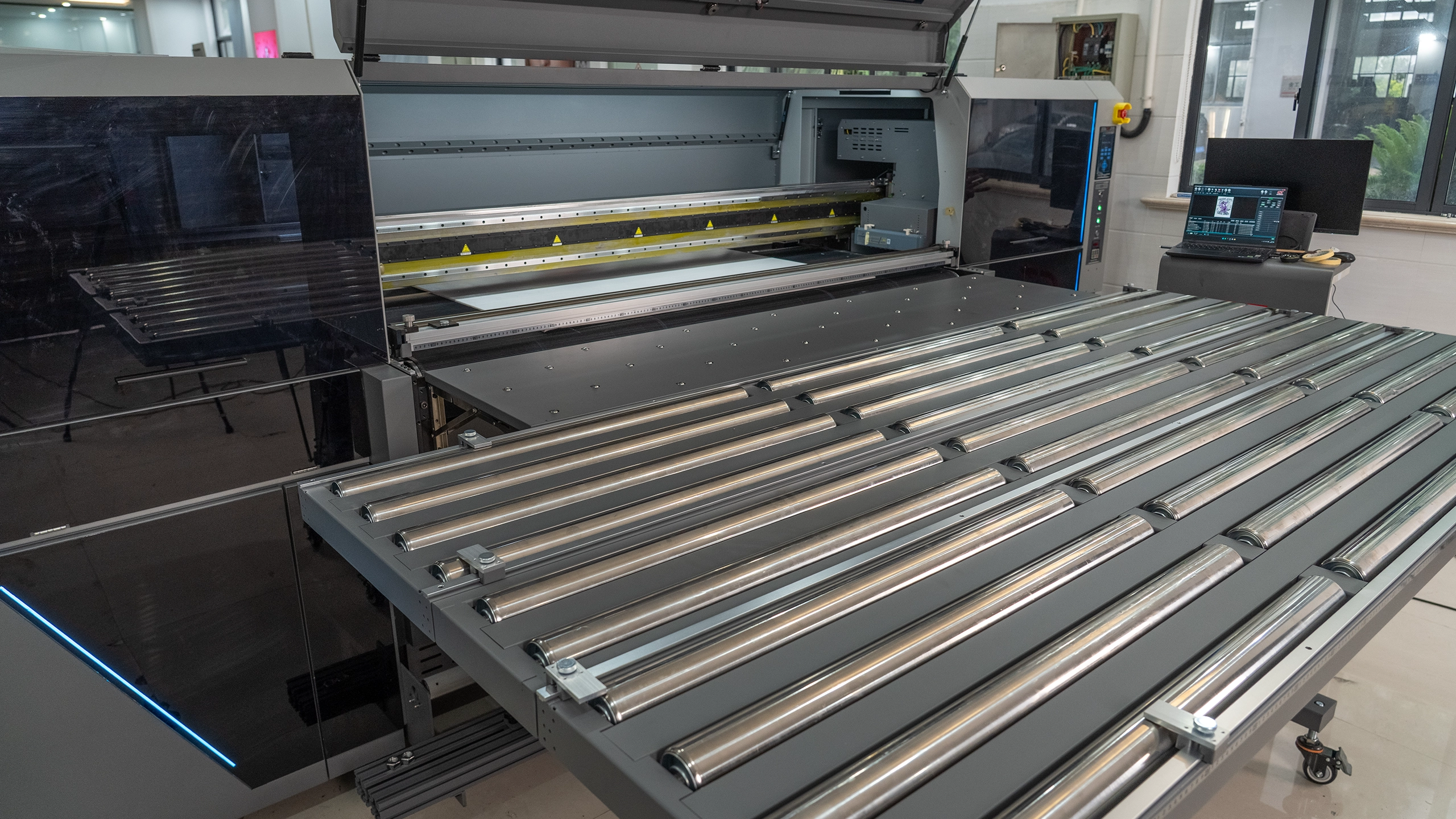

Belt System with Extension Tables

Industrial hybrid design to ensure precise media delivery and good printing performance for flat& roll materials.

Multi-Layer Printing Application

Particularly designed for multi-layer applications: colorful; 2 layers: W+C/C+W; 3 layers:CWC; 4 layers: CKWC-Day and Night; 5 layers: CWKWC on demand with fine details.

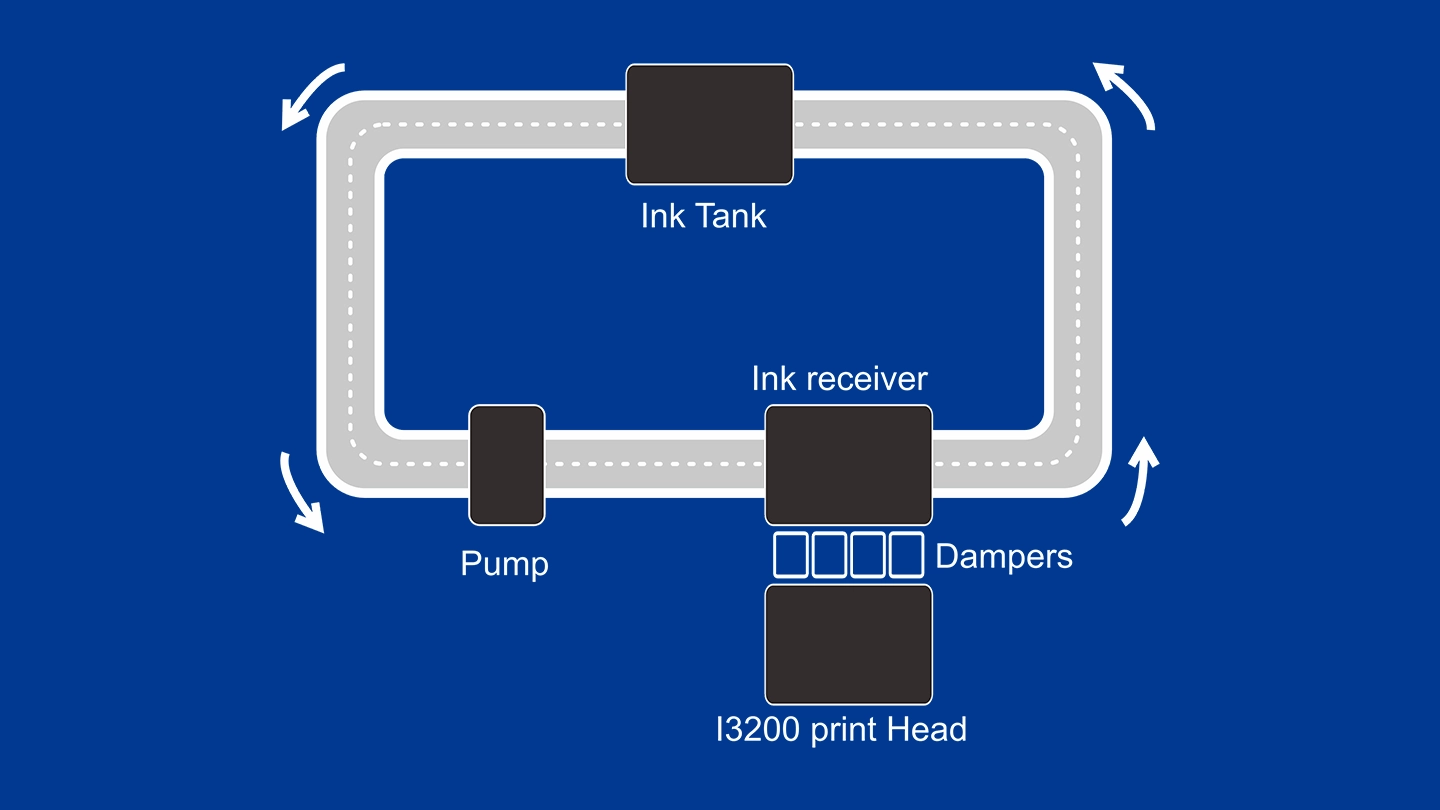

White Ink Recirculation System

The white ink is circulated at regular intervals during idle time to prevent pigment sedimentation that leads to malfunctions of the print head.

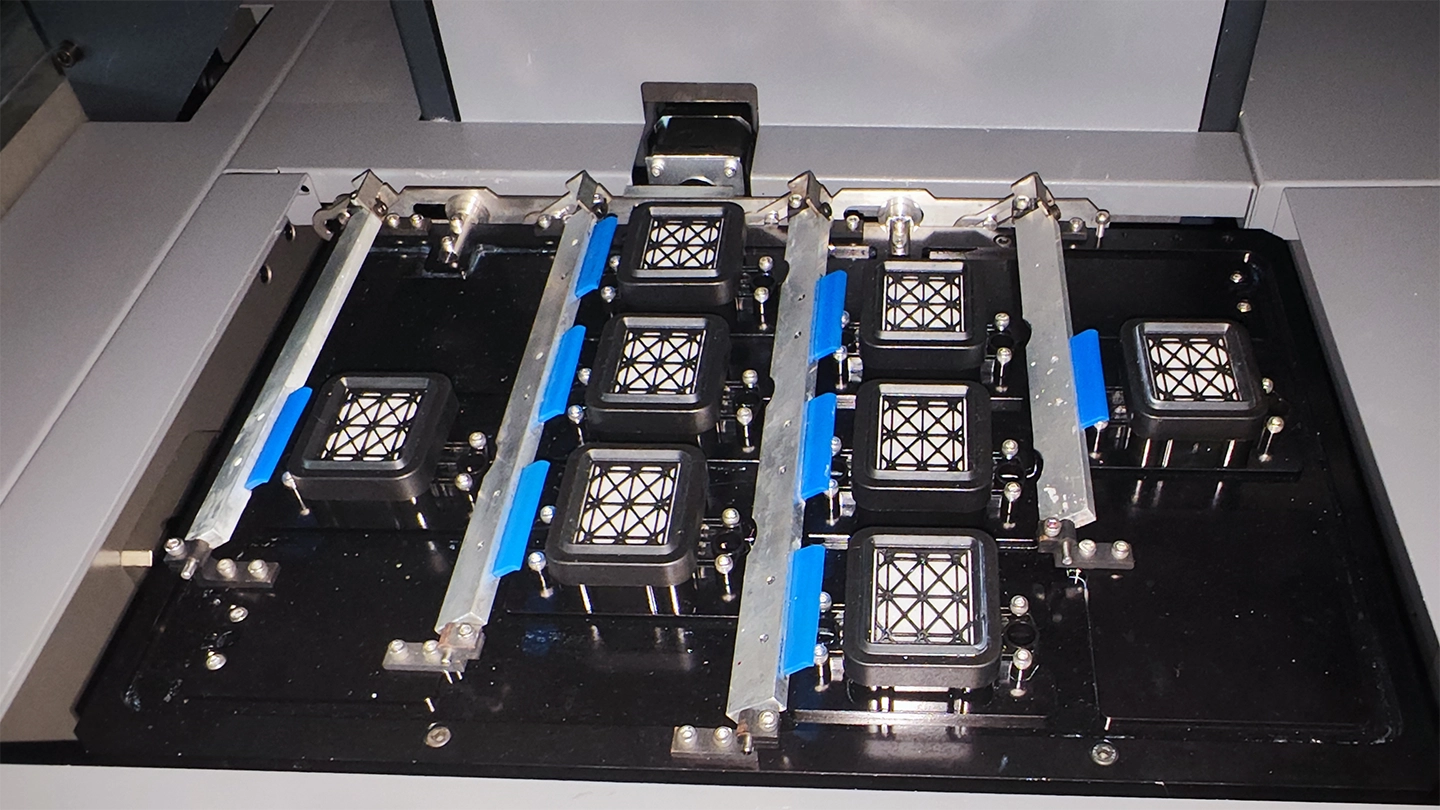

Glossy & Matt Varnish Application

Max 8 heads for free-choice head layout (Different location for varnish) can reach gloosy or matt performance.
