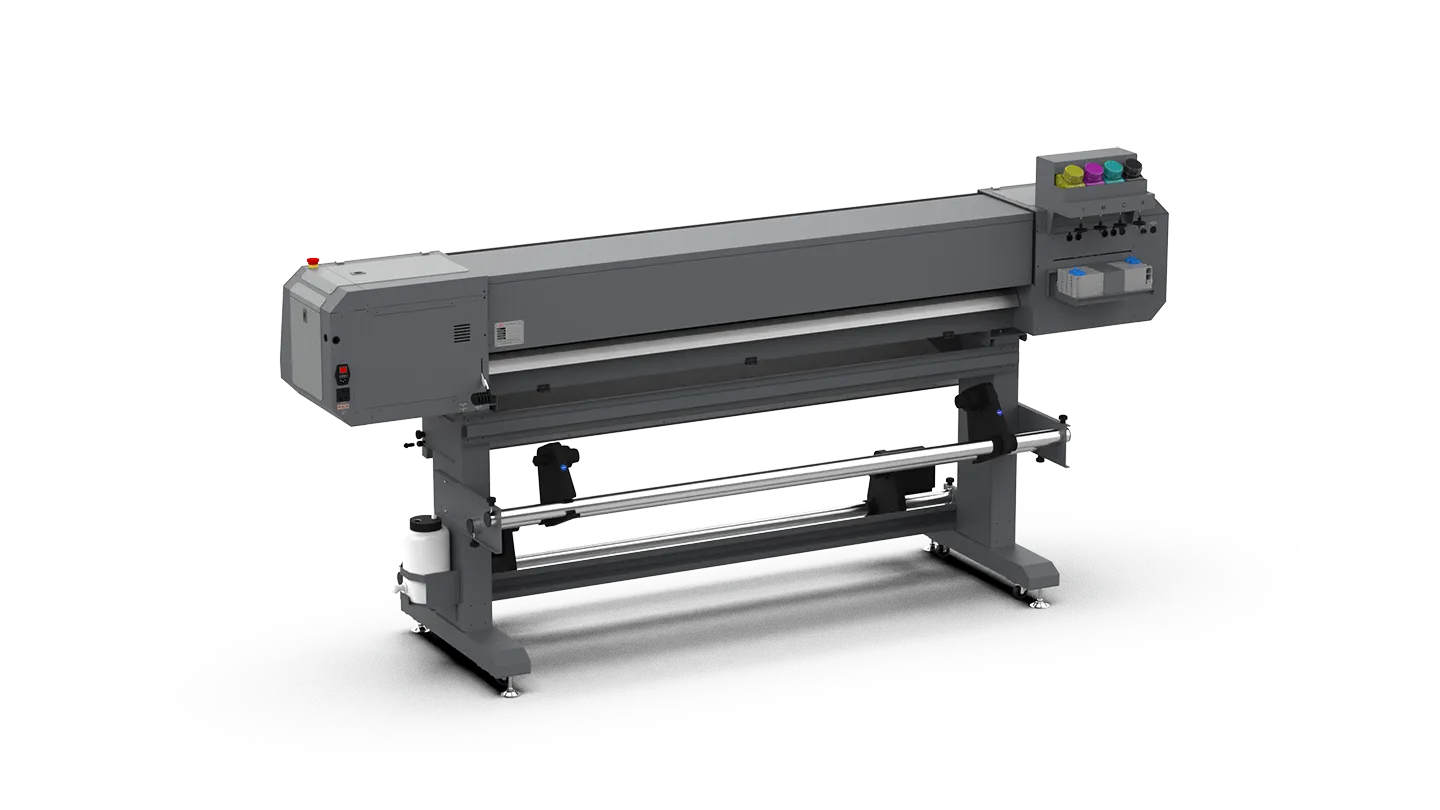

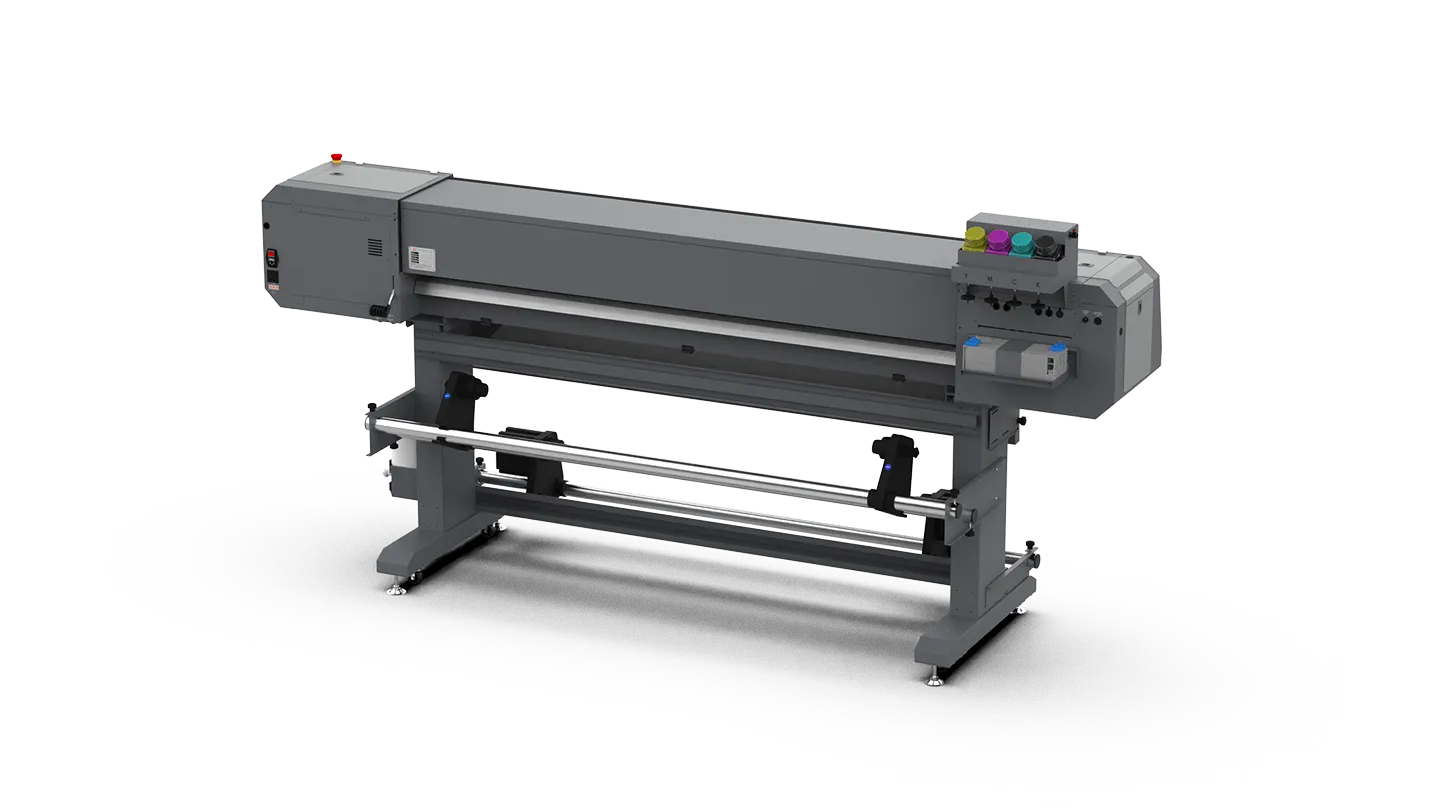

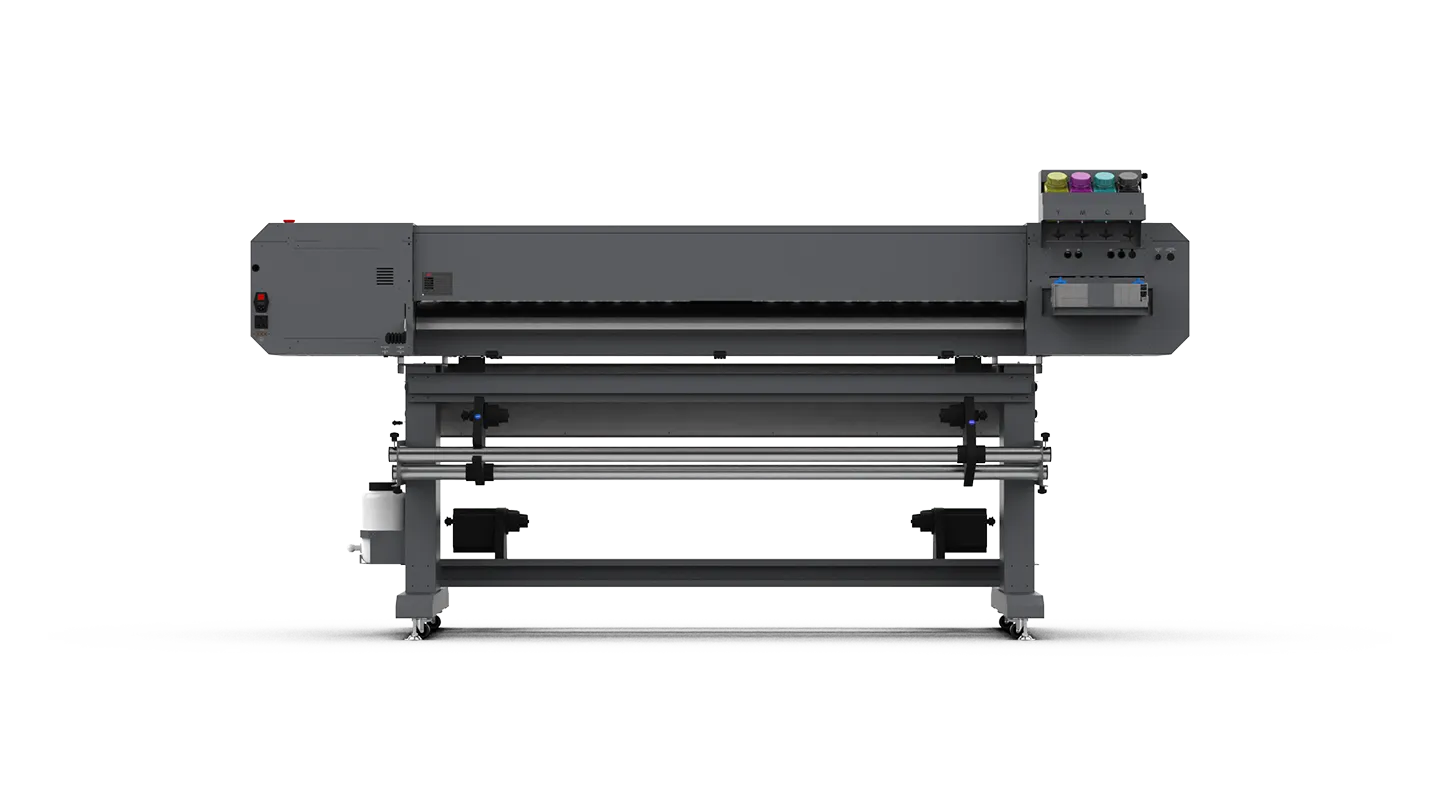

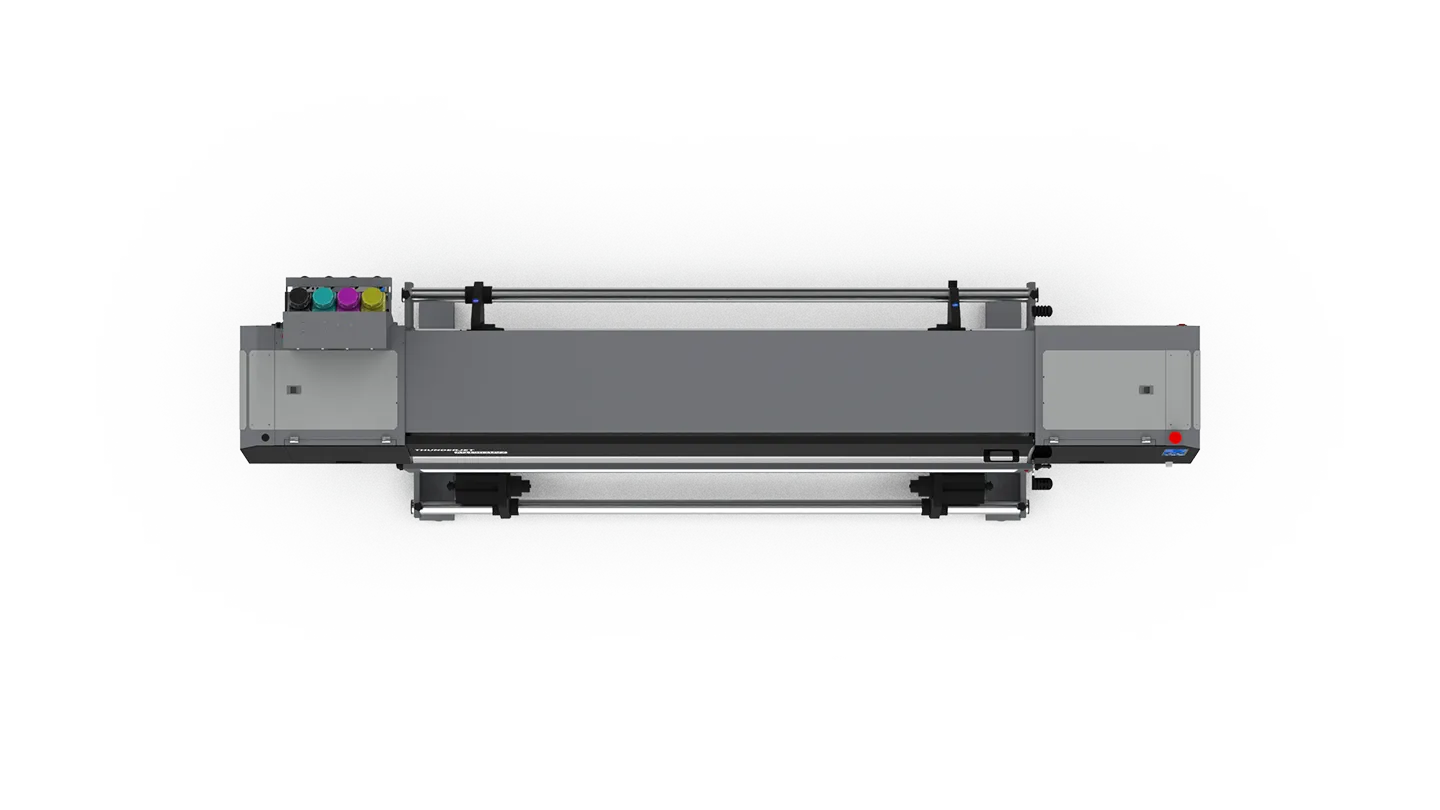

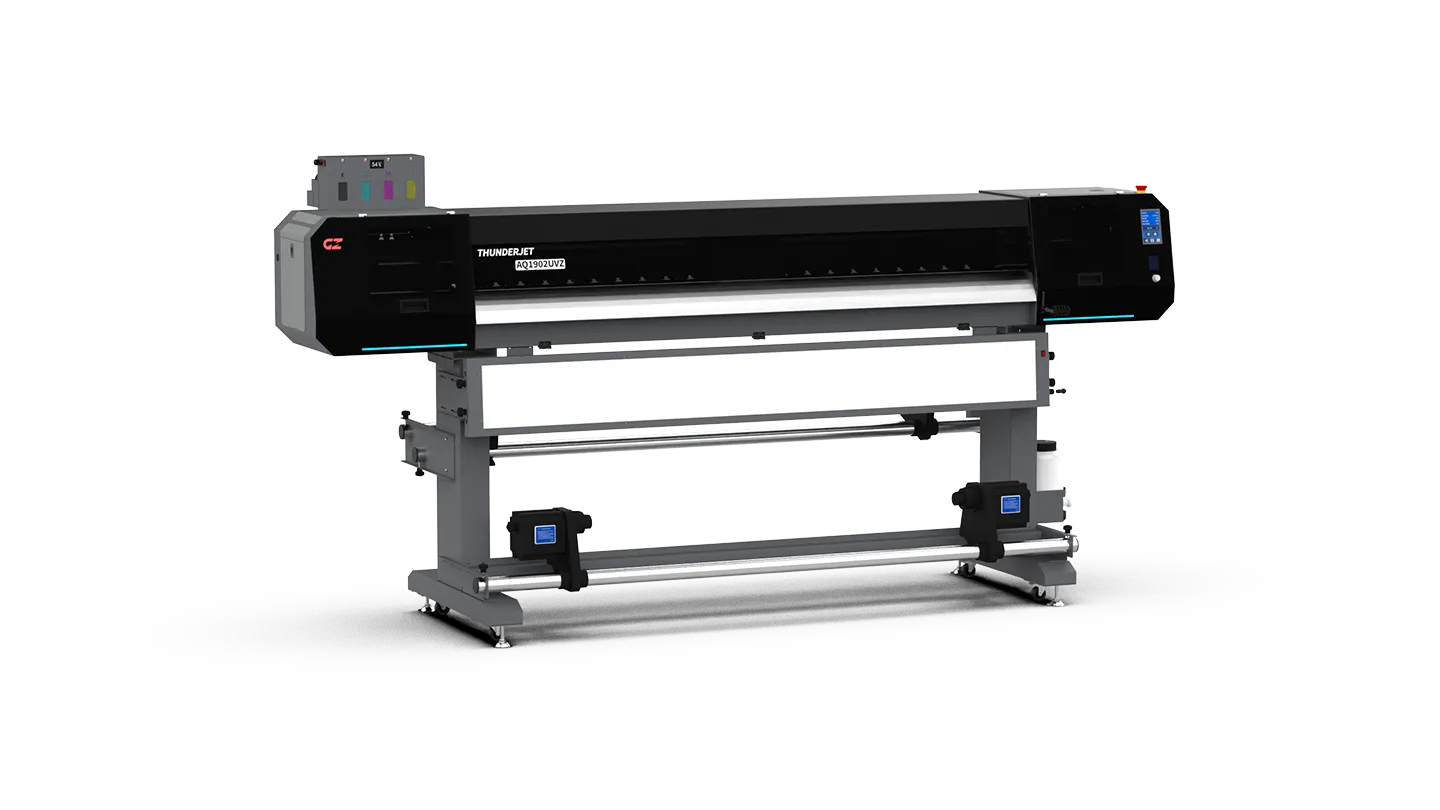

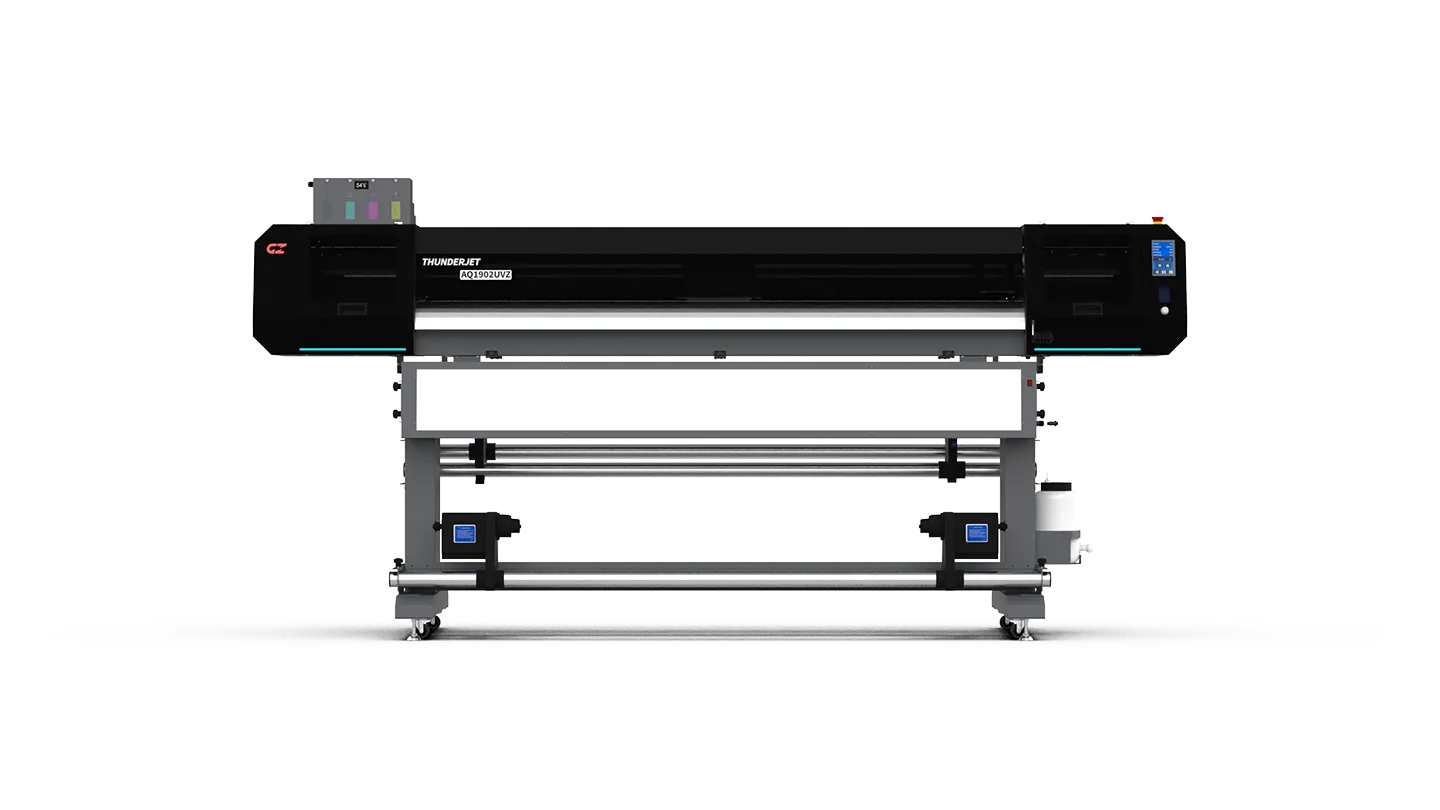

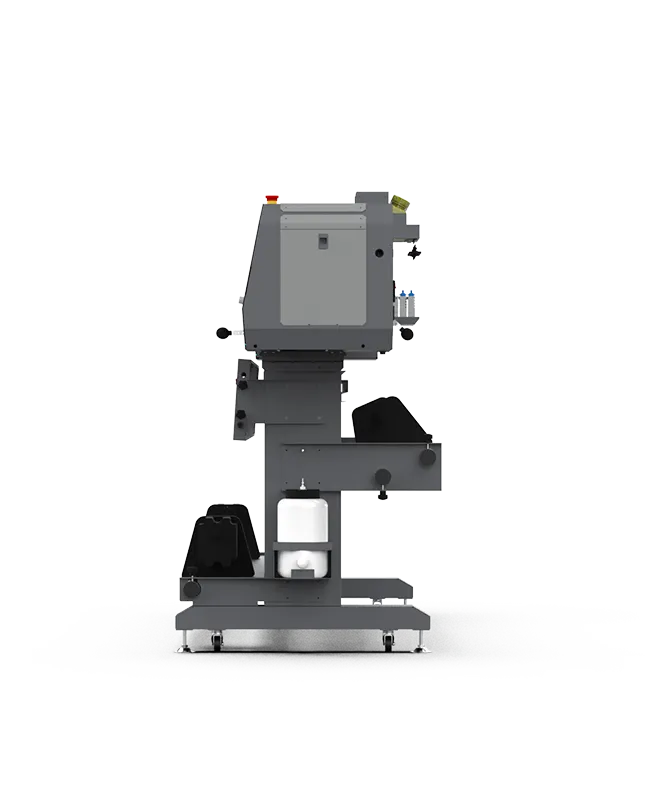

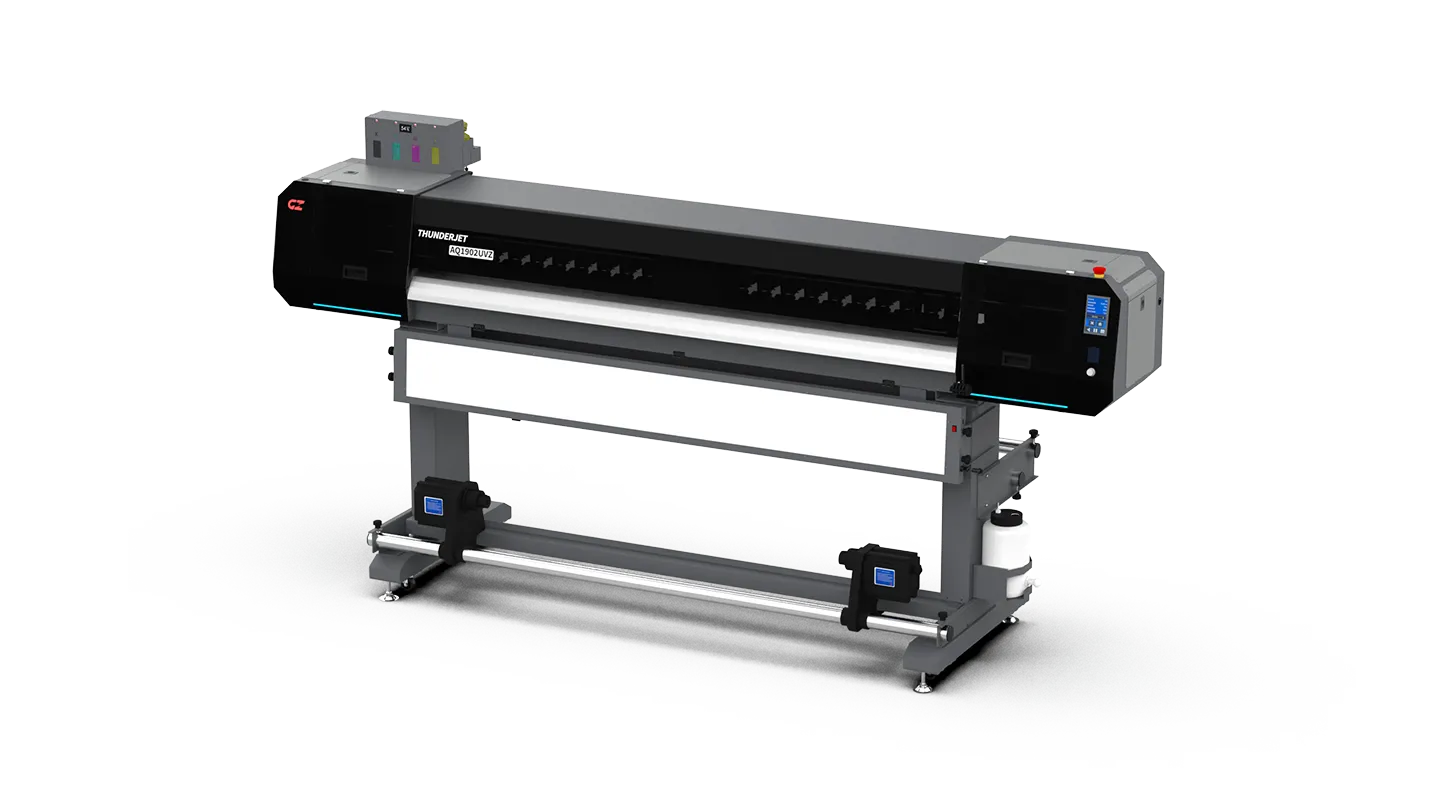

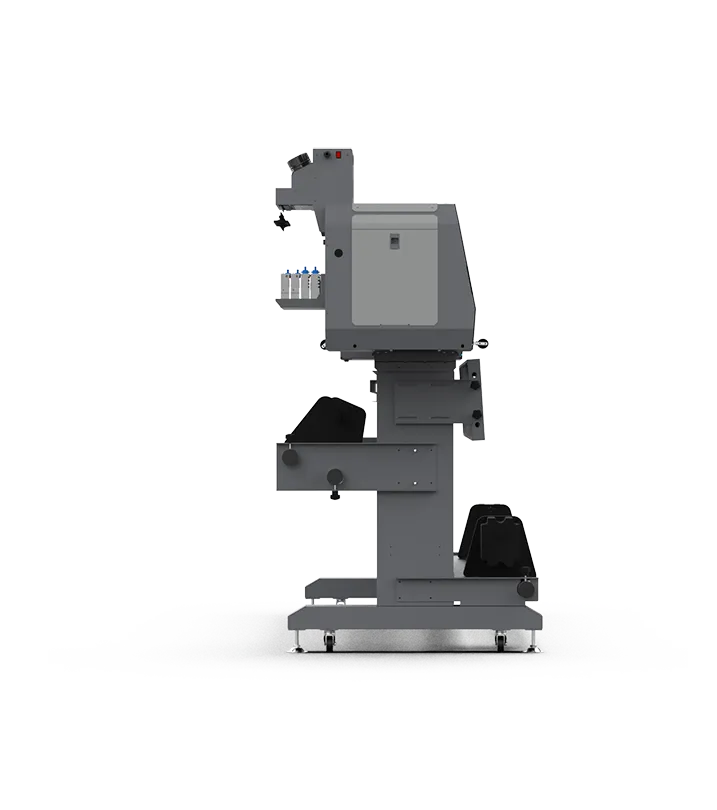

ThunderJet AQ1902UVZ

High Quality 1.9M RTR UV Printer for Multi-Layer Printing,Adding Business Value

Feature Specification Details

●	Multi-Layer Printing Application
●	Intelligent Heating Unit
●	White Ink Recirculation System
●	Water Cooling Platen
●	Adjustable Stepping System

Model	ThunderJet AQ1902UVZ
Print Head	2x Epson I3200 U1 Print Heads
Technology	Drop-on-Demond Piezo with Variable Dot
Curing System	Dual Water Cooling LED UV Lamps
Ink	Gongzheng UV Ink: REI-3
Color Config.	1xKCMY; W+1xKCMY
Ink Supply System	Bulk Ink Supply System + White Ink Recirculation & Stirring System
Ink Tank	1500ml
Printing Width	Max. 1950mm
Media Type	Banner, Coated PP, Vinyl, Backlit Textile, PVC Film, PET Film......
Roll Diameter	Max. 300mm
Roll Weight	Max. 50kgs
Core Diameter	3 in (76.2mm) or 2 in (50.8mm)
Printing Speed	Mode Resolution Color(1H) CWC CWKWC
Printing Speed	Draft 720x1200 dpi 11.5㎡/h 6.2㎡/h Production 720x1200 dpi 9.5㎡/h 4.4㎡/h 2.6㎡/h High-Res 720x1800 dpi 7㎡/h 4.1㎡/h Photo 720x1800 dpi 6㎡/h 2.9㎡/h 1.7㎡/h
Data Interface	External: Ethernet; Internal: Fiber Optical
Working Environment	Temp. 23°C~29°C, Humidity: 50%~80%
Software	FlexiPRINT Mini TX22 / ONYX RIPCenter (Optional)...+ GZ Printer Manager
Power	Single-Phase, 50Hz/AC, 220±10%; 5.2A (Printer+UV Controller)
Packed / Installed Size	LxWxH(mm): 3190x1050x750 / 3064x815x1525
G.W. / N.W.	388kgs / 288kgs

Genuine Epson I3200 U1 Phs

Epson I3200 U1 print head with PrecisionCore MicroTFP technology and original 600 dpi delivers beautiful and smooth printing at high speed.

Water Cooling Platen

Unique self-developed water cooling platen enables printing on a wide range of materials without wrinkle, including heat-sensitive ones.

Intelligent Heating Unit

New-developed heating for ink supply system and print head to ensure smooth ink flow and stable printing performance.

Adjustable Stepping System

Serried pinch rollers, one-piece grit roller and individual adjustable pinch roller assure accurate and wrinkle-free media stepping for different thicknesses of materials.

White Ink Recirculation System

The white ink is circulated at regular intervals during idle time to prevent pigment settling that leads to malfunctions of the print head.

< >
