Eco-solvent Solutions

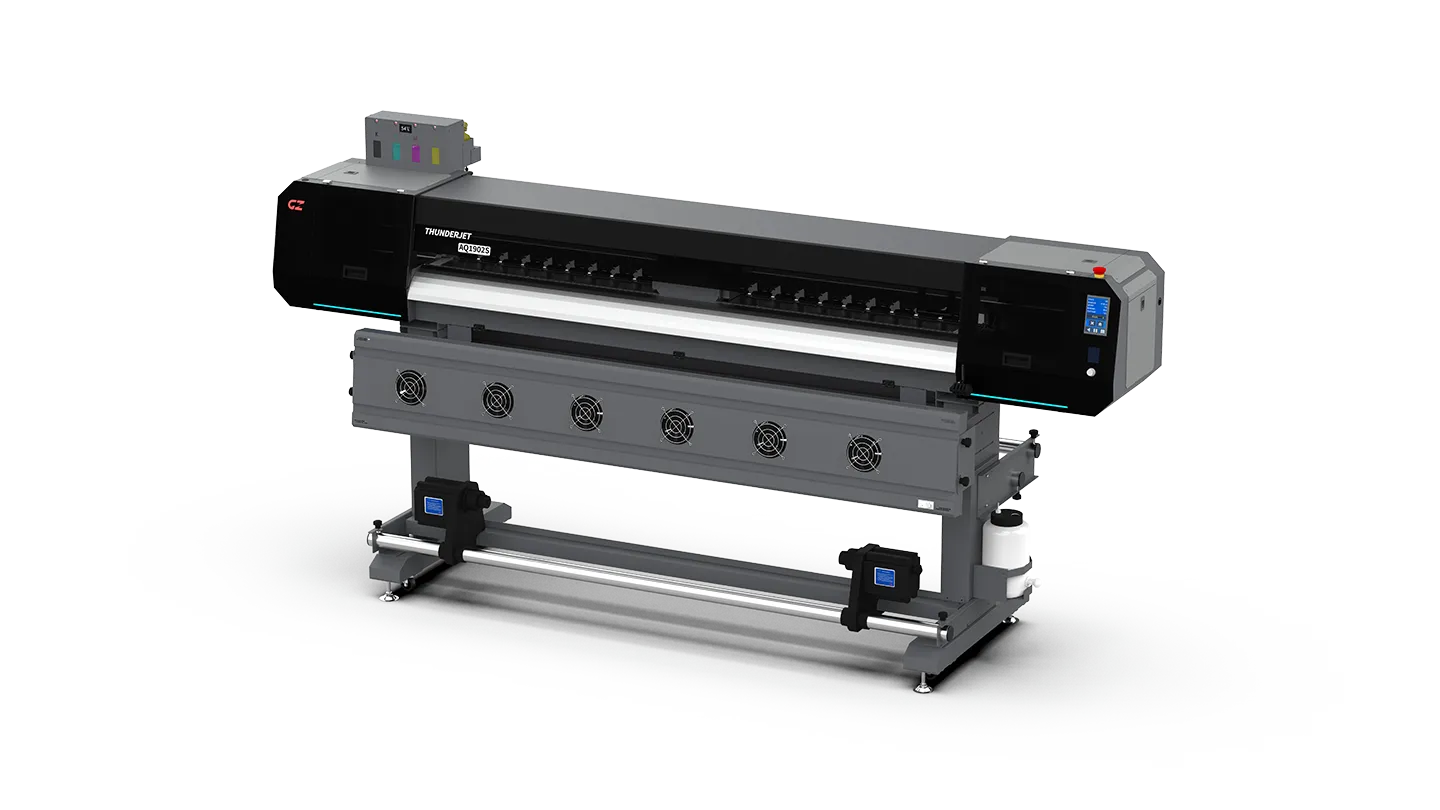

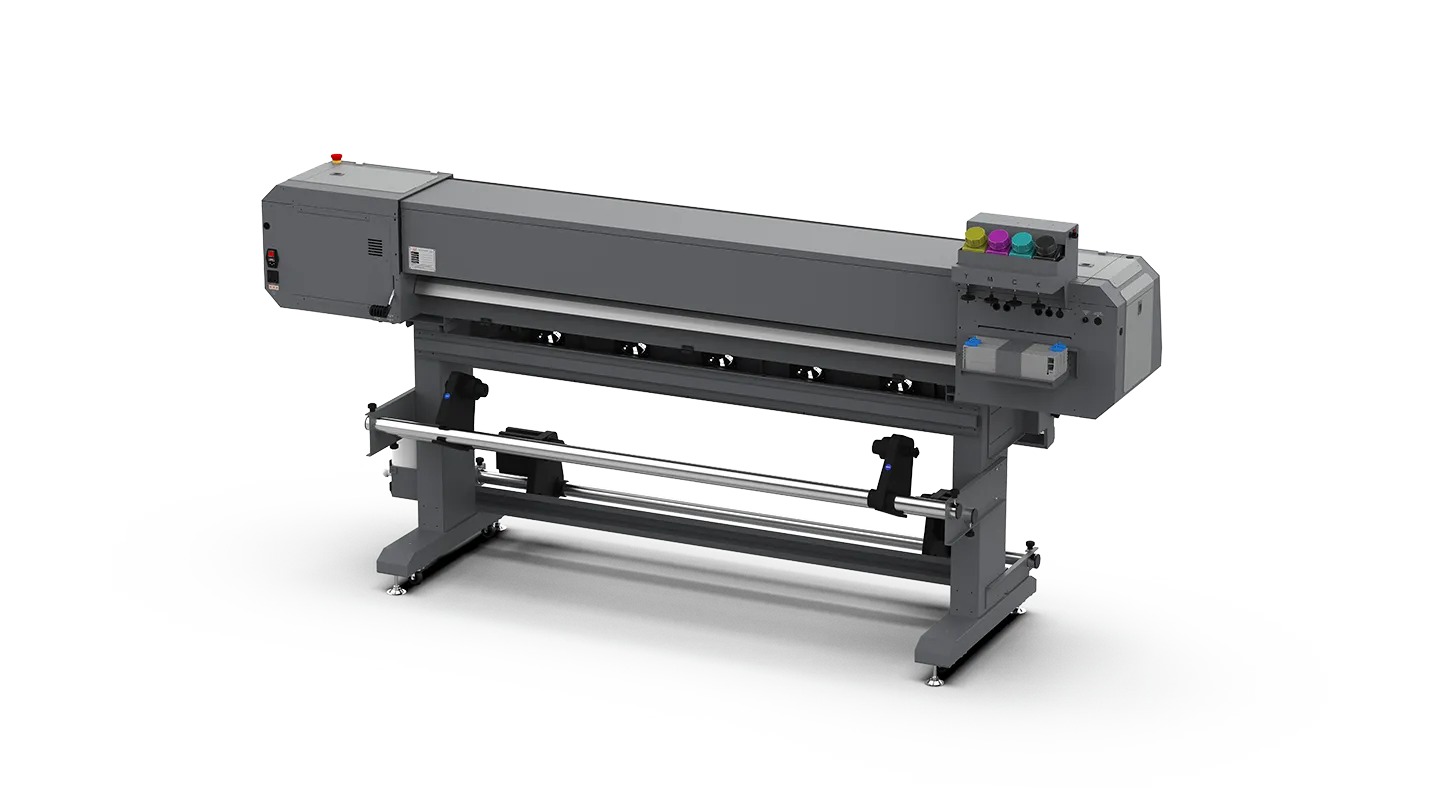

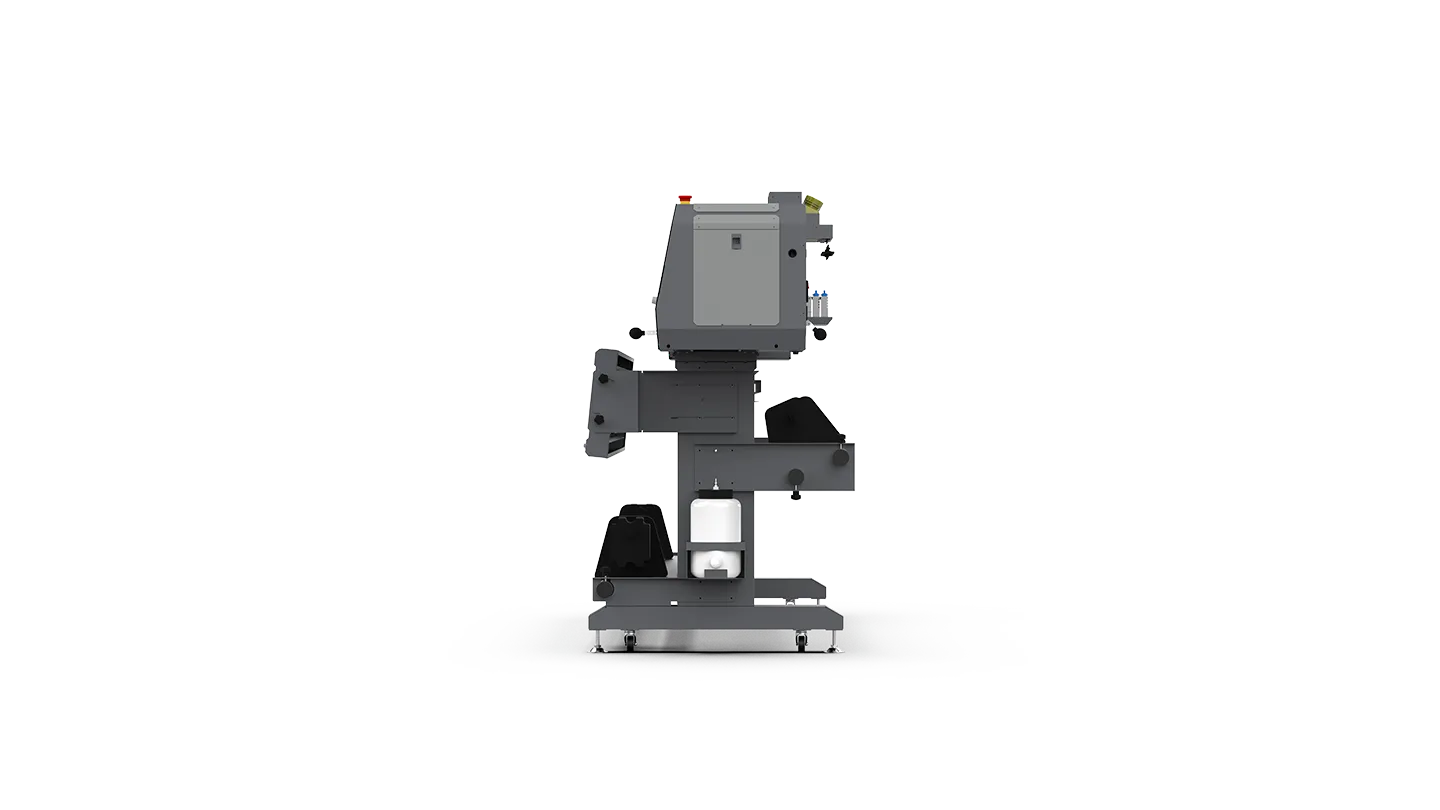

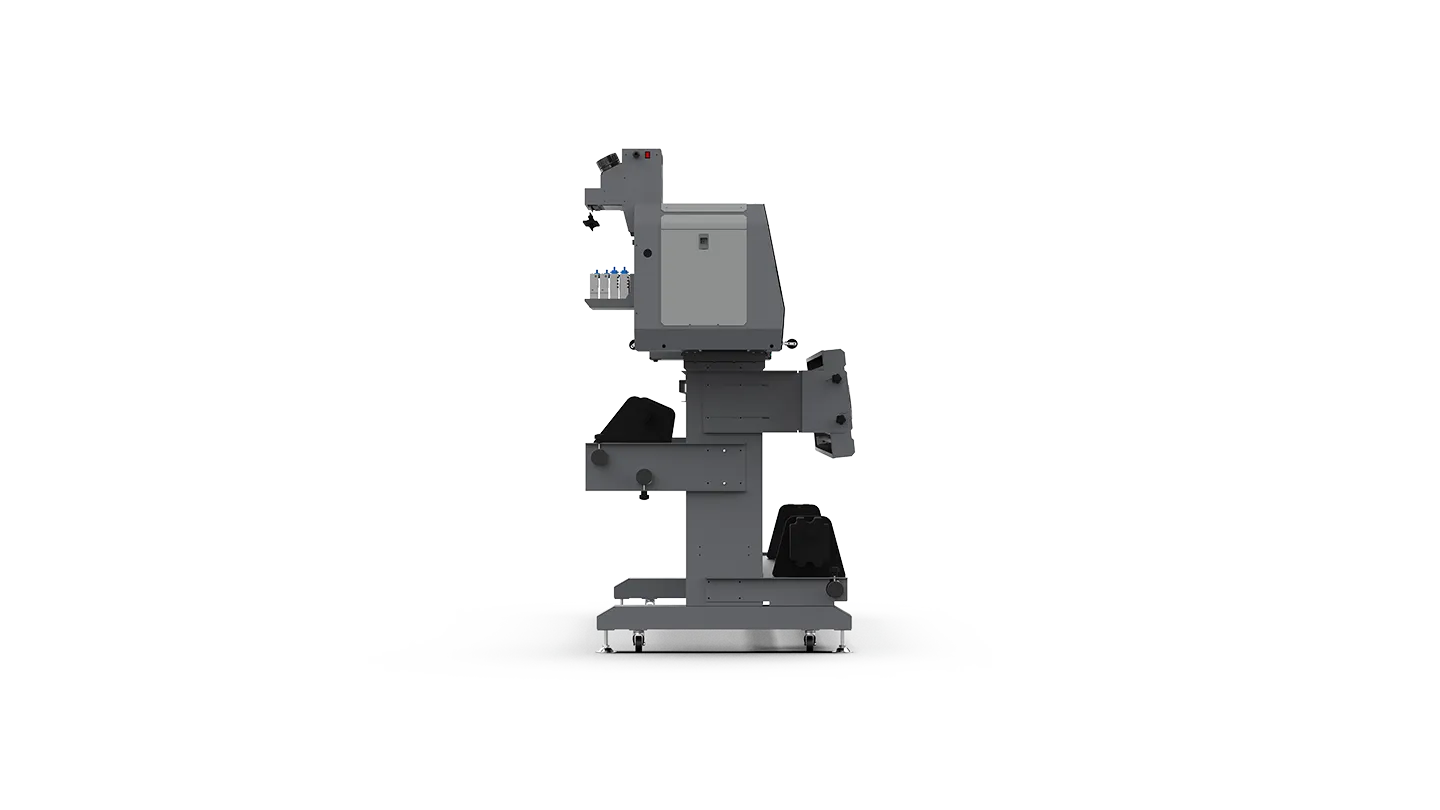

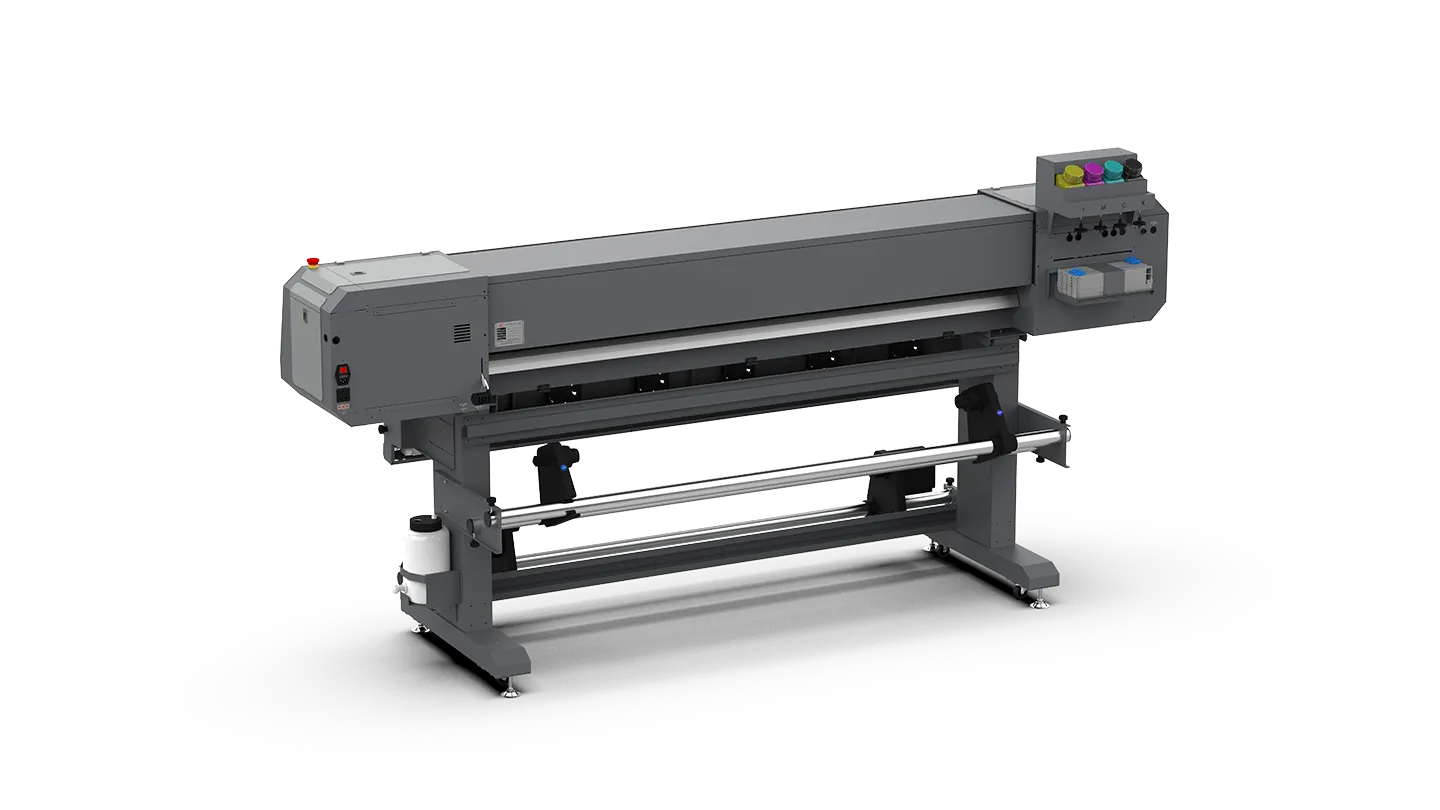

ThunderJet AQ1902S

High Speed and High-Quality 1.9m Eco-Solvent Printer


Genuine Epson I3200 E1 Print Heads


GZ Variable Dot Technology


Optimized Cleaning System


Adjustable Stepping System

Intelligent Heating Unit

High-End Configuration of Movement System

Model

ThunderJet AQ1902S

Print Head

Dual Epson I3200-E1 Print Heads

Technology

Drop-on-Demand Piezo with Variable Dot

Ink

EPI2-2 Years Durability Eco Solvent Ink

Color Config.

K.C.Y.M.

Ink Supply System

Bulk Ink Supply System with Ink Cartridges

Ink Tank

1500ml

Printing Width

Max. 1950mm

Media Type

Banner, Coated PP, Vinyl, PVC Film...

Roll Diameter

Max. 300mm

Roll Weight

Max. 50kgs

Core Diameter

3 in (76.2mm) or 2 in (50.8mm)

Printing Speed

Draft                   360x1200 dpi                  75㎡/h

Production          360x1800 dpi                55㎡/h

High-Res            720x1200 dpi                43㎡/h

Photo                  720x1800 dpi                29㎡/h

Data Interface

External: Ethernet; Internal: Fiber Optical

Working Environment

Temp. 23℃~29℃, Humidity: 50%~80%

Software

FlexiPRINT / Onyx (Optional)...+ GZ Printer Manager

Power

Single Phase, 50Hz/AC, 220V±10%, 6.7A (Printer)+14.6A (IR Dryer)

Packed / Installed Size

LxWxH(mm):3190x1050x750 / 3064x815x1525

G.W. / N.W.

392kgs / 300kgs

Genuine Epson I3200 U1 Phs

Compared with Epson DX5, Epson I3200 has almost doubled NPI, higher fire frequency, greater effective print width & smaller installation space, which enables faster printing speed.

Genuine Epson I3200 U1 Phs.webp

GZ Variable Dot Technology

GZ variable dot technology delivers flawless skin tone, smoother gradient, crisp text and intricate detail without compromising speed.

GZ Variable Dot Technology.webp

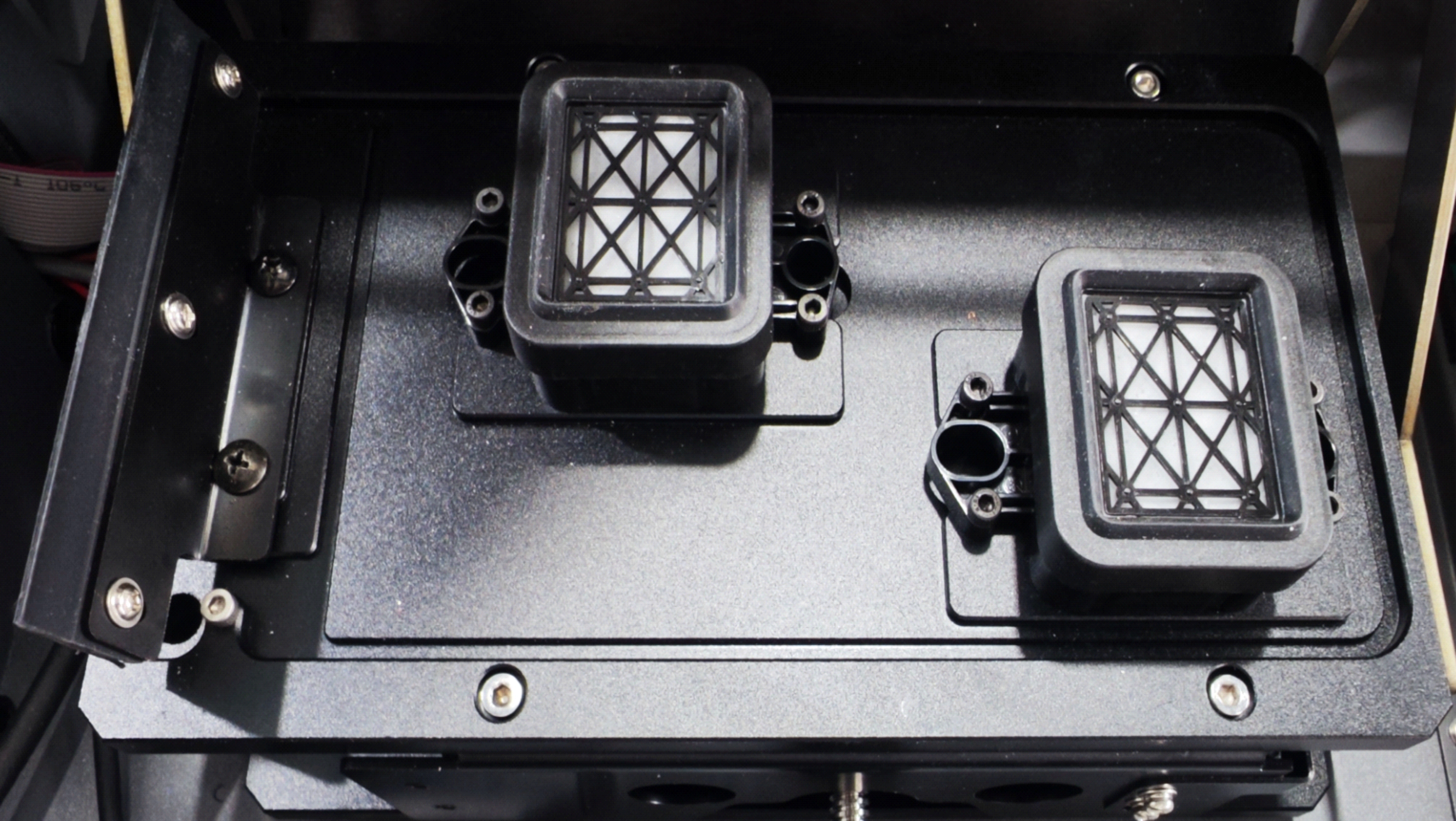

Optimized Cleaning System

Newly designed capping& wiping system with one-pass wiper speeds up the print head maintenance with much lower noise. It maintains the print heads status to achieve perfect output.

Optimized Cleaning System.webp

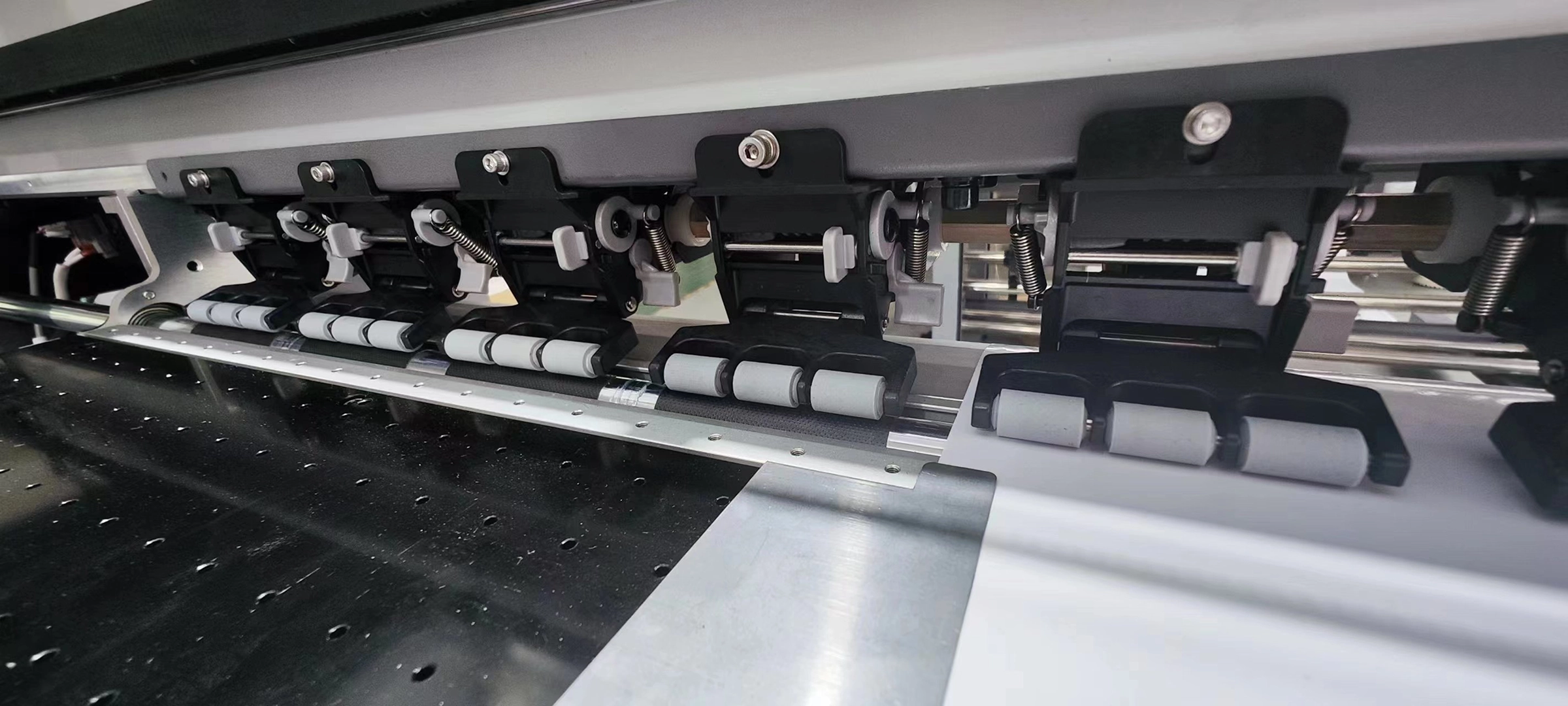

Adjustable Stepping System

One-piece grid roller with pressure adjustable pinch rollers assure accurate and wrinkle-free media stepping for different thickness of materials.

Adjustable Stepping System.webp

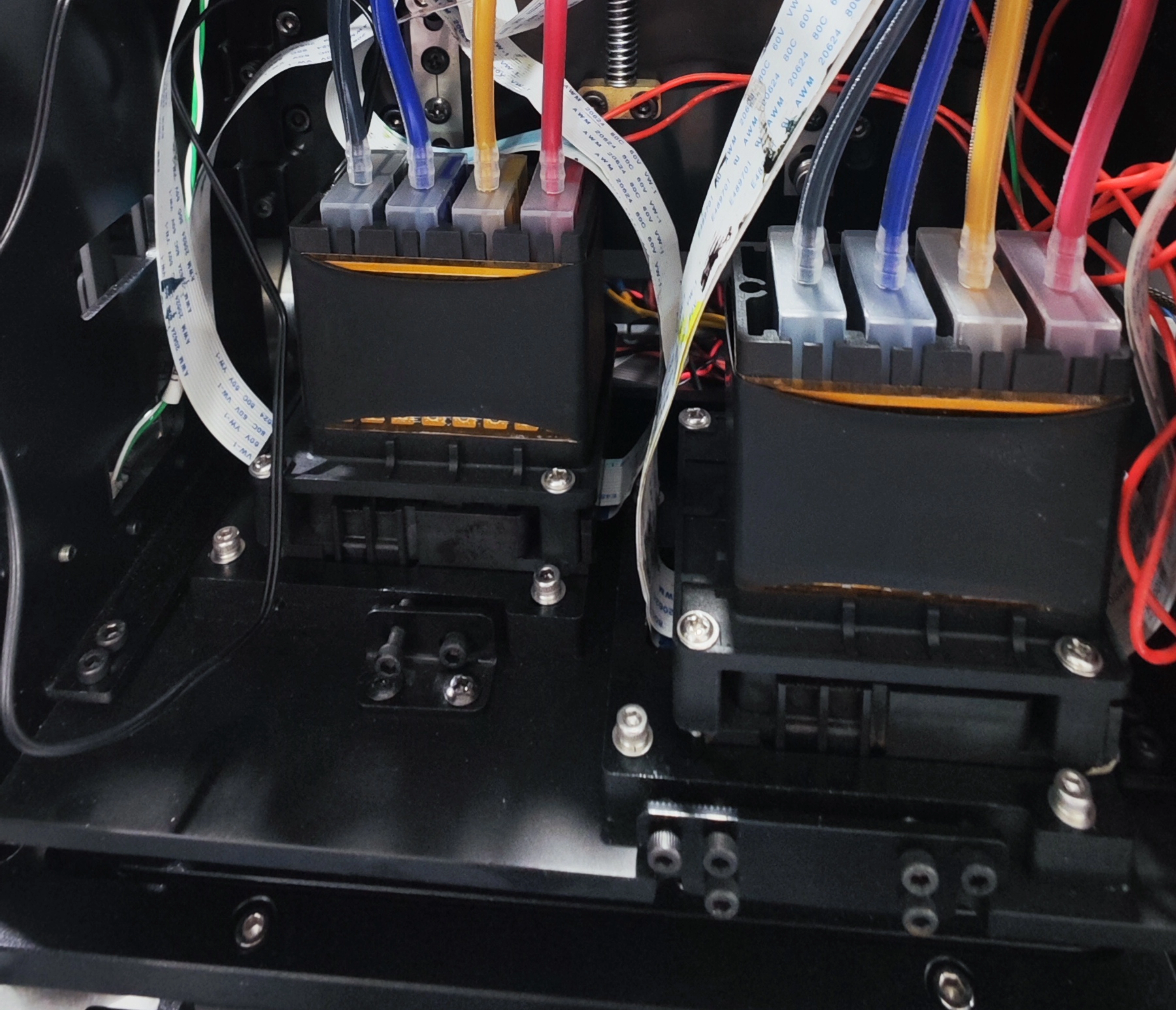

Intelligent Heating Unit

New-developed heating unit for ink supply system and print head ensures smooth ink flow and stable jetting performance, especially in the cold season.

Intelligent Heating Unit.webp

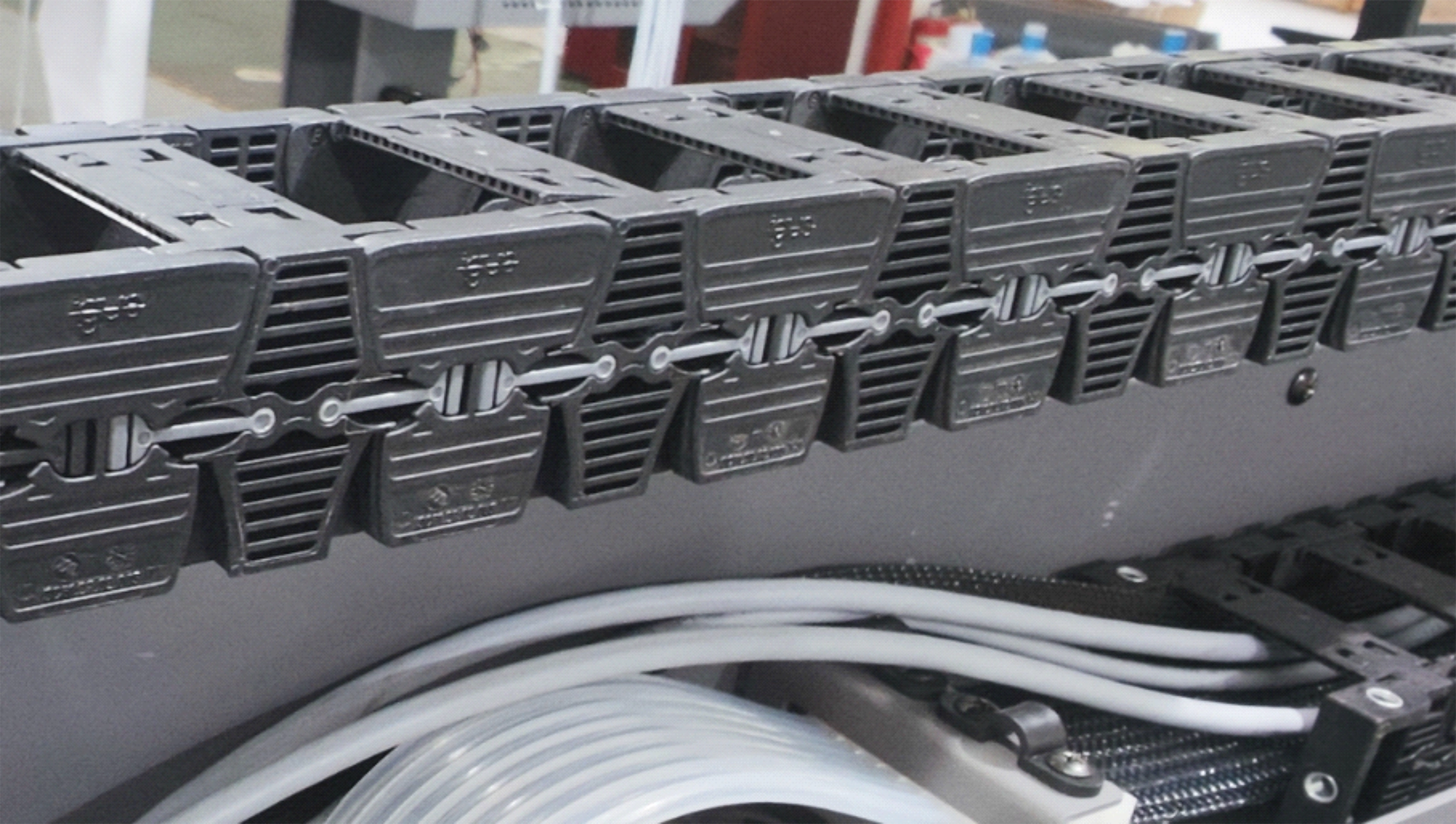

High-End Configuration of Movement System

Germany brand-Igus chain ensures low noise, less vibration and high durability for carriage movement.

High-End Configuration of.webp
< >
