●	Belt System with Extension Tables
●	Multi-Layer Printing Application
●	White Ink Recirculation System
●	Glossy & Matt Varnish Application

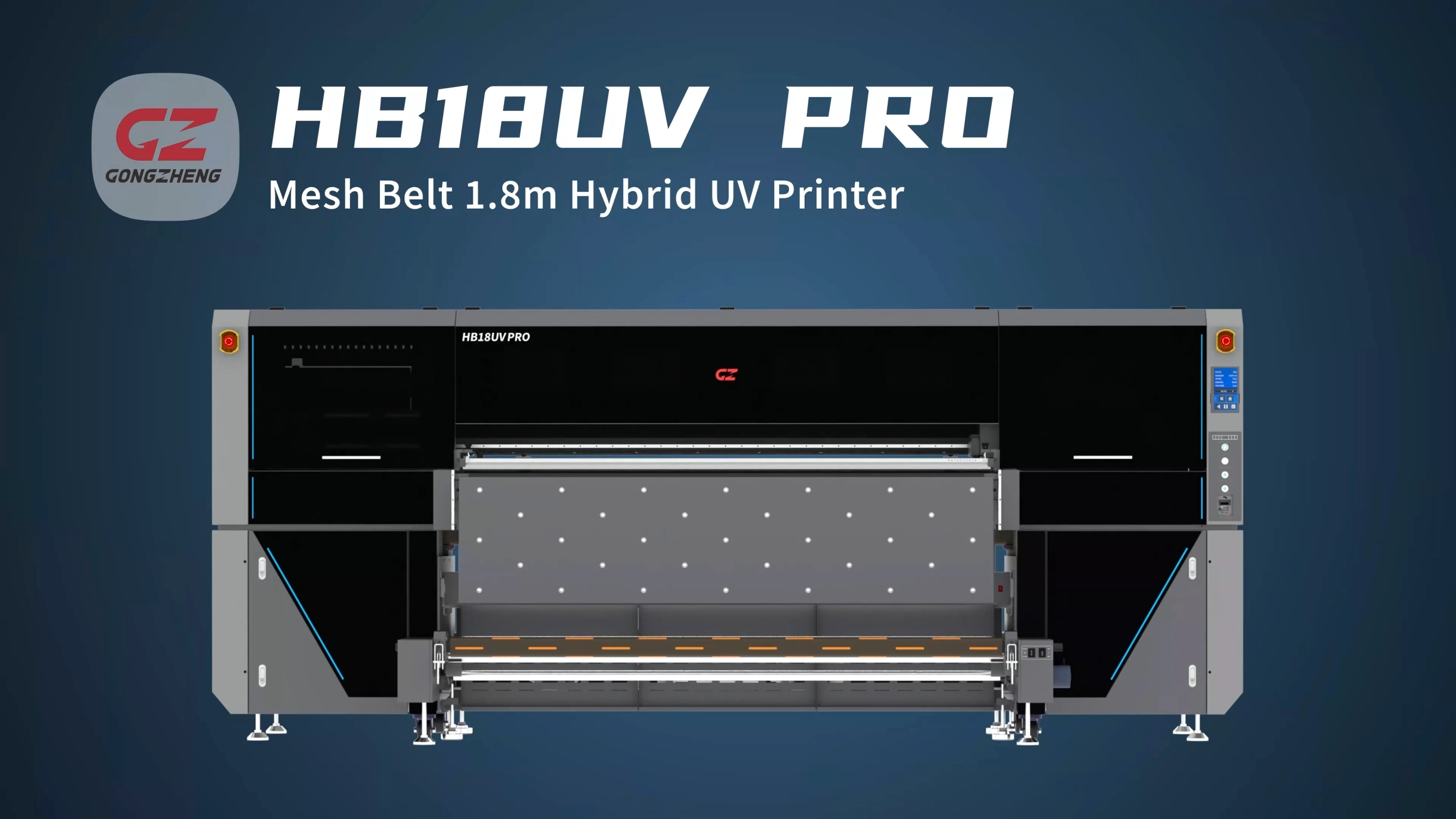

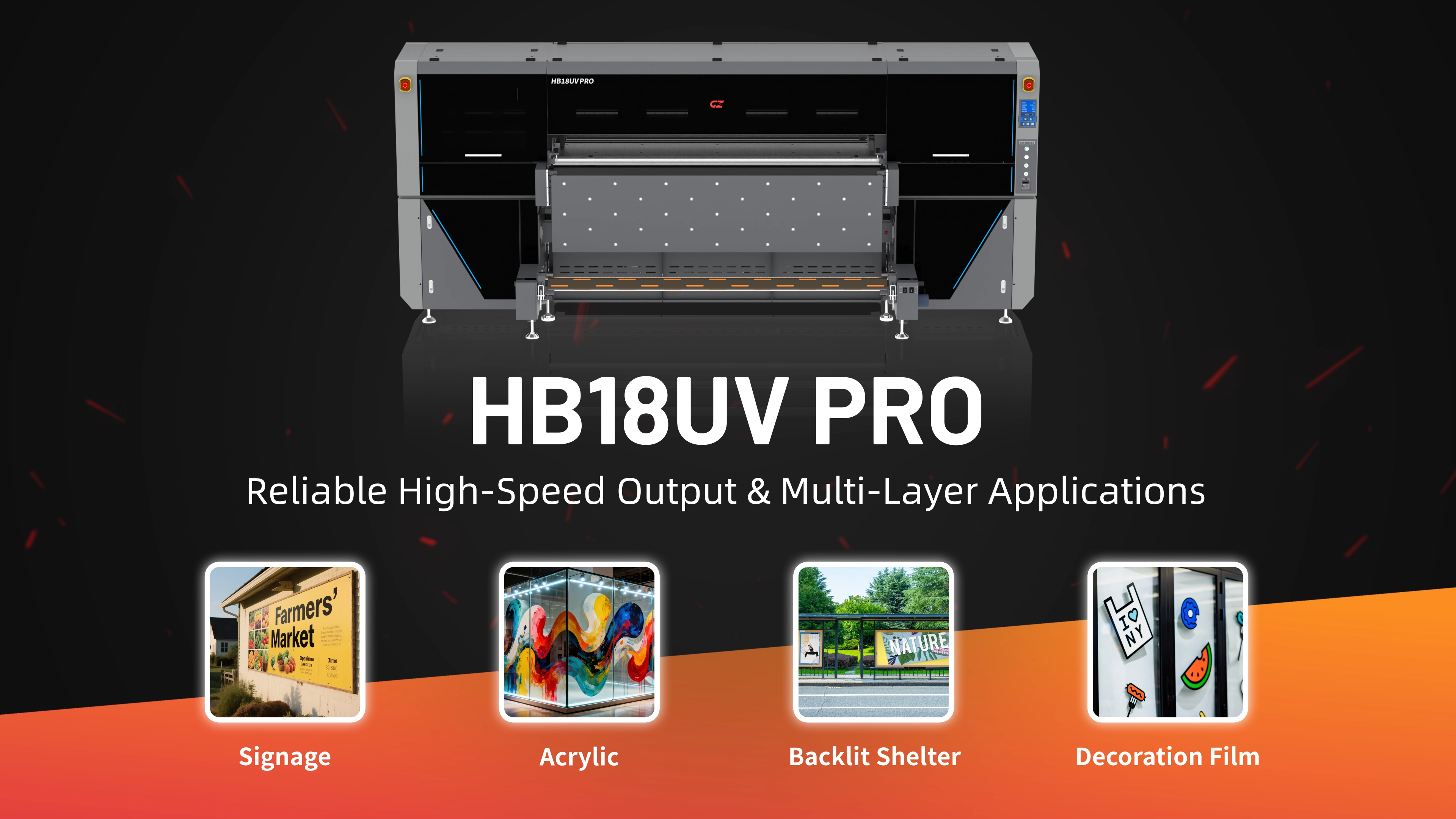

Model	HB18UV PRO
Print Head	3~8 x Epson I3200 U1 Print Heads
Curing System	Dual Water Cooling LED UV Curing System
Ink	Gongzheng Specific UV Ink: REI-3 Certified by Greenguard Gold
Color Config.	KCMY; KCMY+W; W+KCMY+V
Ink Supply System	1.5-Liter Bulk Ink Supply System + White Ink Recirculation & Stirring System
Printing Width	Max. 1850mm
Media Thinkness	Up to 40mm
Media Type	Flexible Media: Ceiling Film, Vinyl, Backlit, Fabric, Wall Paper, Leather...... Rigid Media: PVC Board, Foam Board, Corrugated Paper, Aluminum Sheet, Wood......
Roll Specification	Diameter: Max. 300mm; Weight: 50kgs; Core Diameter: 3 inch
Printing Speed	Mode Resolution Color(6H) CWC(6H) CWV
Printing Speed	Draft 726X1200 dpi 56.5㎡/h 19.2㎡/h 9.8㎡/h Production 726X1200 dpi 42.4㎡/h 15.6㎡/h 7.9㎡/h High-Res 726X1800 dpi 33㎡/h 11.4㎡/h 6.8㎡/h Photo 726X1800 dpi 25.3㎡/h 9㎡/h 5.1㎡/h
Data Interface	External: USB3.0; Internal: Fiber Optical
Working Environment	Temp. 23℃~29℃, Humidity: 50%~80%
Software	FlexiPRINT TX25 / ONYX Ripcenter (Optional) + GZ Printer Manager
Power	Single-Phase, 50Hz/AC, 220V±10%, 15A (Printer)
Packed / Installed Size	LxWxH(mm): 3900x1150x1830 / 3739x1535x1590
G.W. / N.W.	1290kgs / 1076kgs

Belt System with Extension Tables

Industrial hybrid design to ensure precise media delivery and good printing performance for flat& roll materials.

Multi-Layer Printing Application

Particularly designed for multi-layer applications: colorful; 2layers:W+C/C+W;3layers:CWC; 4layers:CKWC-Day and Night;5layers:CWKWC on demand with fine details.

White Ink Recirculation System

The white ink is circulated at regular intervals during idle time to prevent pigment sedimentation that leads to malfunctions of the print head.

Print Head Heating System

Unique built-in heater for print head ensures smooth ink flow and superior print quality.
